ATV/UTV/GO-KART OUTDOOR POWERSPORTS WHEEL

Size：6、7、8、9、10、12、14 inch
Material: steel 440CL
Brand: RICHRISE /RISEEVER /STONERISE
Type: off-road steel wheel rim for ATV & UTV vehicles
Replacement wheel rims for ATV / UTV vehicle : Polaris Ranger, Can-Am Outlander, Yamaha Grizzly, Honda Pioneer, Kawasaki Mule and similar vehicles etc.
Customization：Customization is available according to customer drawings or samples,OEM&ODM available
MOQ:50PCS
Certification:ISO/Inmetro/DOT/TUV
Surface Treatment:E-coating/Powder Coating/Chrome Plated
Color Options:Black/Silver/Customized
Quality Guarantee:1Year Warranty
Place of Origin: Shandong, China (Mainland）

Quantity:
Availability:





Inquire Add to Basket

Model:
6、7、8、9、10、12、14 inch
Brand:
RICHRISE /RISEEVER /STONERISE

Product Description

Wheel Specifications

规格 WHEEL SIZE	RECOMMENDED TIRES SIZE 适配轮胎	分布圆 PCD BOLT PATTERN (mm)	中心孔 CENTER BORE (mm)	螺栓孔 BOLT HOLE (mm)
6X3.25	13X5.00-6	3-Ø79	55	3-Ø8.5
		3-Ø90	54	3-Ø8.5
		3-Ø90	54	3-Ø10.5
		4-Ø88.9	50.5	4-Ø10.5
		4-Ø90	55	4-Ø10.5
6X3.5	13X5.00-6	3-Ø79	55	3-Ø8.5
		3-Ø90	54	3-Ø8.5
		3-Ø90	54	3-Ø10.5
		4-Ø88.9	50.5	4-Ø10.5
		4-Ø90	55	4-Ø10.5
6X4.5	15X6.00-6	3-Ø79	55	3-Ø8.5
		3-Ø90	54	3-Ø8.5
		3-Ø90	54	3-Ø10.5
		4-Ø88.9	50.5	4-Ø10.5
		4-Ø90	55	4-Ø10.5
7X4.5	165/65-7	3-Ø78	54	3-Ø8.5
		3-Ø90	54	3-Ø8.5
		3-Ø90	54	3-Ø10.5
		4-Ø88	68	4-Ø8.5
		4-Ø90	70	4-Ø8.5
		4-Ø110	90	4-Ø10.5
7X5.0	165/65-7 16X8-7	3-Ø78	54	3-Ø8.5
		3-Ø90	54	3-Ø8.5
		3-Ø90	54	3-Ø10.5
		4-Ø88	68	4-Ø8.5
		4-Ø90	70	4-Ø8.5
		4-Ø110	90	4-Ø10.5
7X5.5	165/65-7 16X8-7	3-Ø78	54	3-Ø8.5
		3-Ø90	54	3-Ø8.5
		3-Ø90	54	3-Ø10.5
		4-Ø88	68	4-Ø8.5
		4-Ø90	70	4-Ø8.5
		4-Ø110	90	4-Ø10.5
8X3.75	16X6.5-8 16X7.5-8 480-8	4-Ø88	68	4-Ø8.5
		4-Ø100	60	4-Ø14.5-60°
		4-Ø101.6	72	4-Ø14.5-60°
		4-Ø110	90	4-Ø8.5/Ø10.5
		4-Ø137	118	4-Ø8.5
		5-Ø114.3	64/70/72/80	5-Ø14.5-60°
8X5.0	18X6-8	4-Ø88	68	4-Ø8.5
		4-Ø100	60	4-Ø14.5-60°
		4-Ø101.6	72	4-Ø14.5-60°
		4-Ø110	90	4-Ø8.5/Ø10.5
		4-Ø137	118	4-Ø8.5
		5-Ø114.3	64/70/72/80	5-Ø14.5-60°
8X5.375	18X7-8 16X6.5-8 16X7.5-8	4-Ø88	68	4-Ø8.5
		4-Ø100	60	4-Ø14.5-60°
		4-Ø101.6	72	4-Ø14.5-60°
		4-Ø110	90	4-Ø8.5/Ø10.5
		4-Ø137	118	4-Ø8.5
		5-Ø114.3	64/70/72/80	5-Ø14.5-60°
8X5.5	19X7-8 20X7-8 21X7-8	4-Ø88	68	4-Ø8.5
		4-Ø100	60	4-Ø14.5-60°
		4-Ø101.6	72	4-Ø14.5-60°
		4-Ø110	90	4-Ø8.5/Ø10.5
		4-Ø137	118	4-Ø8.5
		5-Ø114.3	64/70/72/80	5-Ø14.5-60°
8X7.0	18X7.5-8 18X8.5-8 18X9.5-8 19X8.5-8	4-Ø88	68	4-Ø8.5
		4-Ø100	60	4-Ø14.5-60°
		4-Ø101.6	72	4-Ø14.5-60°
		4-Ø110	90	4-Ø8.5/10.5
		4-Ø137	118	4-Ø8.5
		5-Ø114.3	64/70/72/80	5-Ø14.5-60°
8X8.5	21X11-8	4-Ø88	68	4-Ø8.5
		4-Ø100	60	4-Ø14.5-60°
		4-Ø101.6	72	4-Ø14.5-60°
		4-Ø110	90	4-Ø8.5/10.5
		4-Ø137	118	4-Ø8.5
		5-Ø114.3	64/70/72/80	5-Ø14.5-60°
8X9.0	22X11-8	4-Ø88	68	4-Ø8.5
		4-Ø100	60	4-Ø14.5-60°
		4-Ø101.6	72	4-Ø14.5-60°
		4-Ø110	90	4-Ø8.5/10.5
		4-Ø137	118	4-Ø8.5
		5-Ø114.3	64/70/72/80	5-Ø14.5-60°
9X5.5	6.90-9	4-Ø100	60	4-Ø14.5-60°
		4-Ø101.6	72	4-Ø14.5-60°
		4-Ø110	70/90	4-Ø10.5
		5-Ø114.3	64/70/72/80	5-Ø14.5-60°
9X8.0	19X10-9 20X10-9 20X11-9 22X10-9	4-Ø100	60	4-Ø14.5-60°
		4-Ø101.6	72	4-Ø14.5-60°
		4-Ø110	70/90	4-Ø10.5
		5-Ø114.3	64/70/72/80	5-Ø14.5-60°
9X8.5	20X11-9	4-Ø100	60	4-Ø14.5-60°
		4-Ø101.6	72	4-Ø14.5-60°
		4-Ø110	70/90	4-Ø10.5
		5-Ø114.3	64/70/72/80	5-Ø14.5-60°
9X9.0	20X10-9 20X11-9 25X11-9	4-Ø100	60	4-Ø14.5-60°
		4-Ø101.6	72	4-Ø14.5-60°
		4-Ø110	70/90	4-Ø10.5
		4-Ø115	82.6	4-Ø10.0
		5-Ø114.3	64/70/72/80	5-Ø14.5-60°
9X10.0	25X12.00-9 25X13.00-9	4-Ø100	60	4-Ø14.5-60°
		4-Ø101.6	72	4-Ø14.5-60°
		4-Ø110	70/90	4-Ø10.5
		5-Ø114.3	64/70/72/80	5-Ø14.5-60°
10X5.5	21X7-10 22X7-10 23X7-10	4-Ø110	70/90	4-Ø10.5
		4-Ø140	110	4-Ø10.5
		4-Ø145	115	4-Ø10.5
		4-Ø100	64/72	4-Ø14.5-60°
		4-Ø101.6	72	4-Ø14.5-60°
		5-Ø114.3	64/70/72/80	5-Ø14.5-60°
		4-Ø110	90	4-Ø12.5-60°
		4-Ø145	85	4-Ø11-60°
10X8	22X10-10	4-Ø110	70/90	4-Ø10.5
		4-Ø140	110	4-Ø10.5
		4-Ø145	115	4-Ø10.5
		4-Ø100	64/72	4-Ø14.5-60°
		4-Ø101.6	72	4-Ø14.5-60°
		5-Ø114.3	64/70/72/80	5-Ø14.5-60°
		4-Ø110	90	4-Ø12.5-60°
		4-Ø136	110	4-Ø11-60°
		4-Ø145	85	4-Ø11-60°
12X6.0	25X8-12	4-Ø100	60/64/65/70	4-Ø14.5-60°
		4-Ø101.6	64/67.8/70/71.2/72	4-Ø14.5-60°
		4-Ø110	64/67.9/72	4-Ø14.5-60°
		4-Ø110	60/72	4-Ø14.5-60°
		5-Ø114.3	64/70/72/75/81/84	5-Ø14.5-60°
		4-Ø115	82.6	4-Ø10.0
		4-Ø136	110	4-Ø10.5/Ø12.4
		4-Ø156	131	4-Ø10.5
12X7.0	21X9-12 225/80-12	4-Ø100	60/64/65/70	4-Ø14.5-60°
		4-Ø101.6	64/67.8/70/71.2/72	4-Ø14.5-60°
		4-Ø110	64/67.9/72	4-Ø14.5-60°
		4-Ø110	60/72	4-Ø14.5-60°
		5-Ø114.3	64/70/72/75/81/84	5-Ø14.5-60°
		4-Ø115	82.6	4-Ø10.0
		4-Ø136	110	4-Ø10.5/Ø12.4
		4-Ø156	131	4-Ø10.5
12X8.0	26X10-12	4-Ø100	60/64/65/70	4-Ø14.5-60°
		4-Ø101.6	64/67.8/70/71.2/72	4-Ø14.5-60°
		4-Ø110	64/67.9/72	4-Ø14.5-60°
		4-Ø110	60/72	4-Ø14.5-60°
		5-Ø114.3	64/70/72/75/81/84	5-Ø14.5-60°
		4-Ø115	82.6	4-Ø10.0
		4-Ø136	110	4-Ø10.5/Ø12.4
		4-Ø156	131	4-Ø10.5
14X6.0	27X9-14	4-Ø110	60/68.3/70	4-Ø13-60°
		4-Ø136	112	4-Ø10.75
		4-Ø156	131	4-Ø10.75
14X7.5	27X11-14	4-Ø110	60/68.3/70	4-Ø13-60°
		4-Ø136	112	4-Ø10.75
		4-Ø156	131	4-Ø10.75
14X8.0	27X11-14	4-Ø110	60/68.3/70	4-Ø13-60°
		4-Ø136	112	4-Ø10.75
		4-Ø156	131	4-Ø10.75

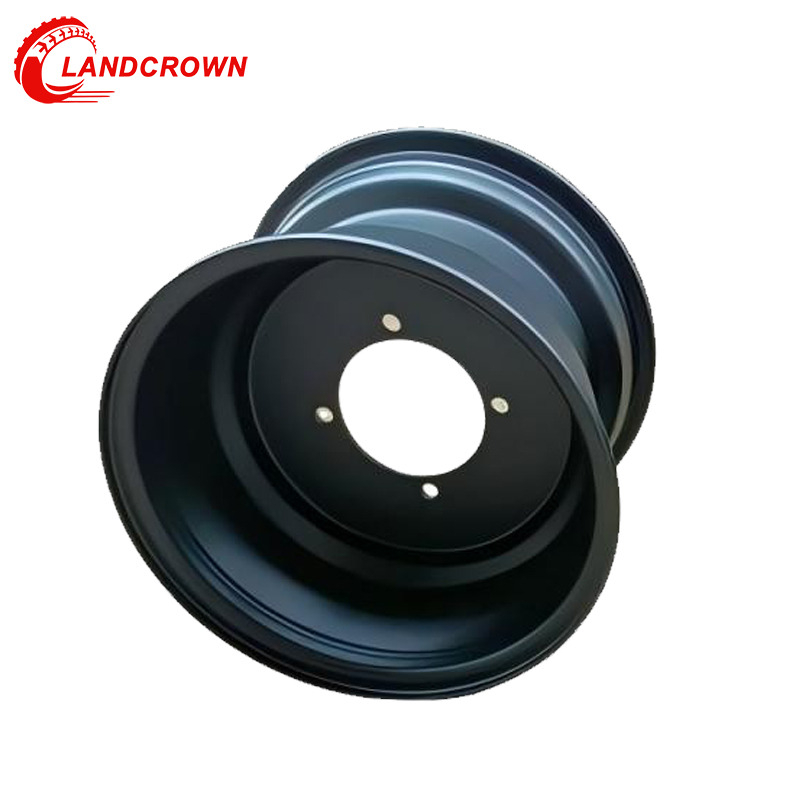

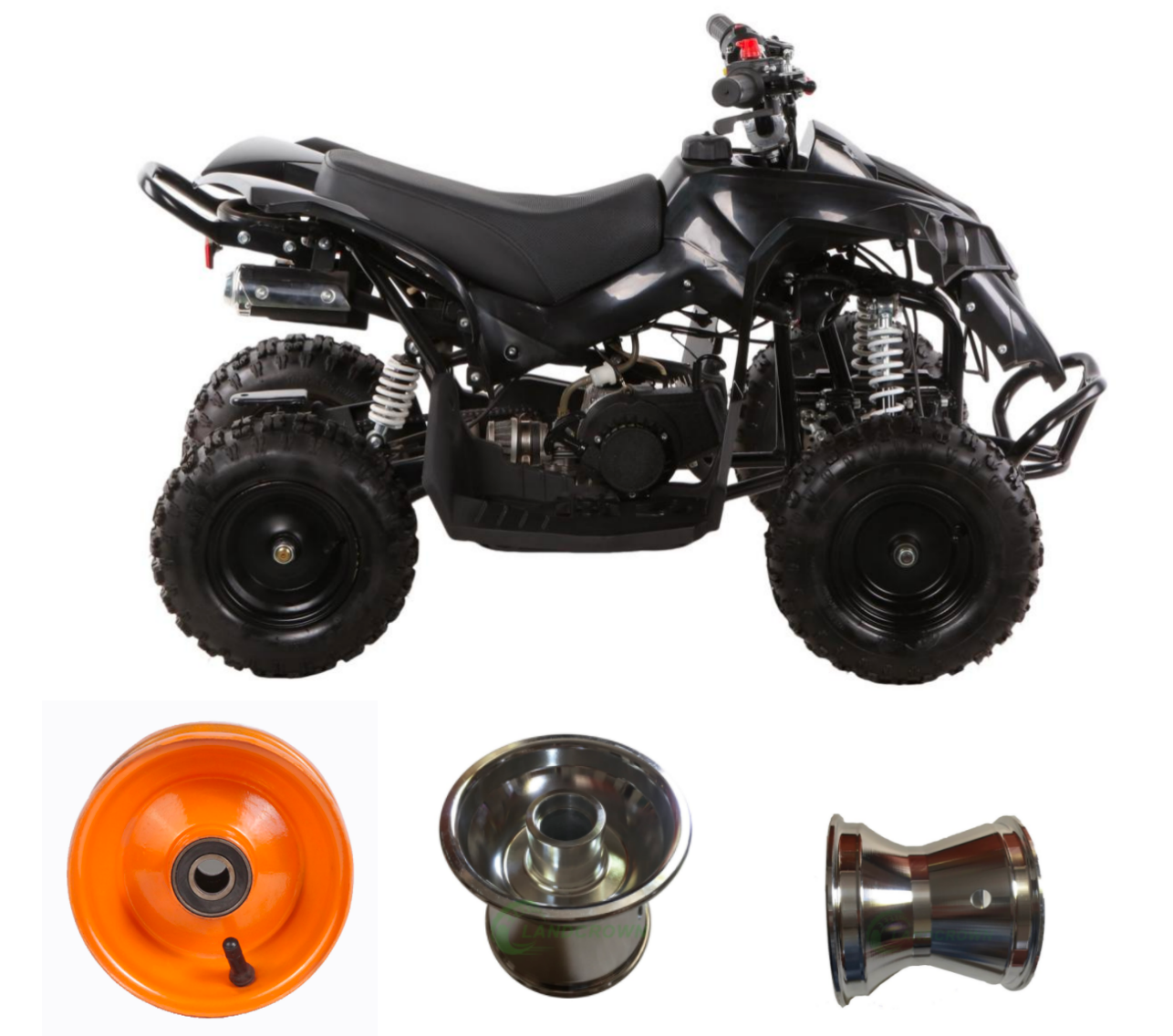

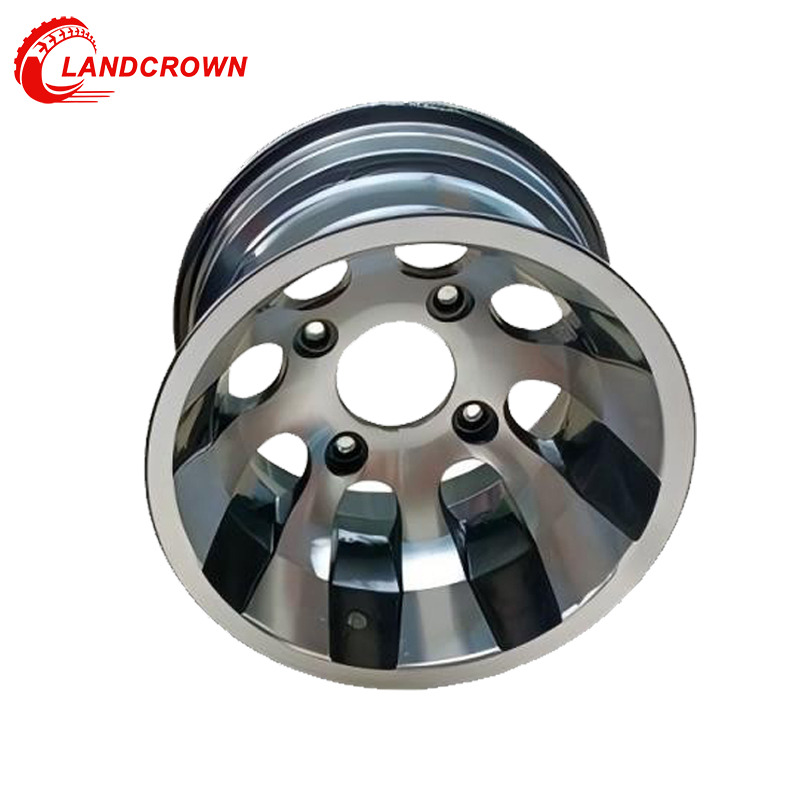

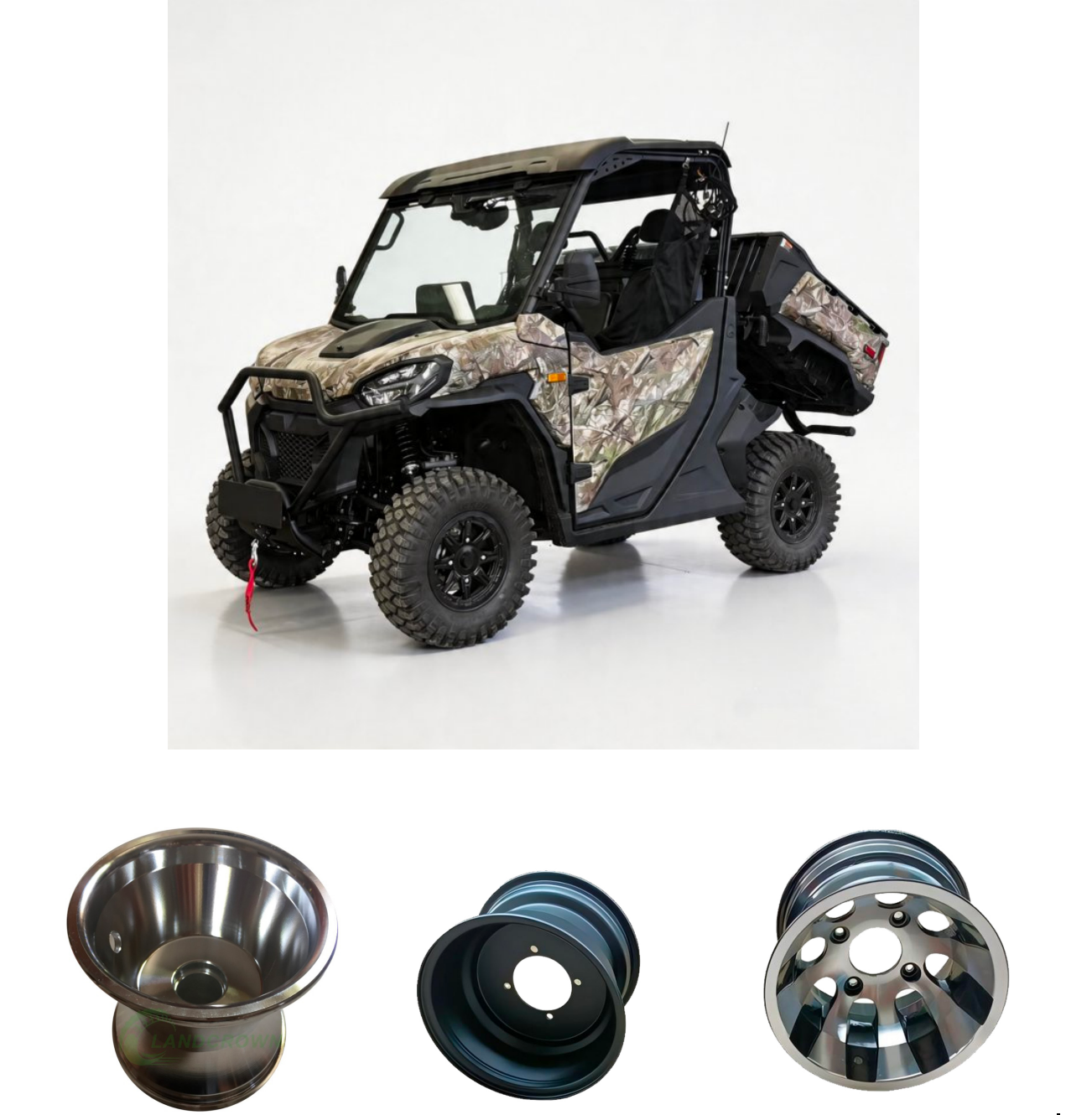

ATV Steel Wheels

Construction

Our ATV steel wheels are forged from top - grade steel, boasting remarkable tensile strength. The thick - walled rim design can withstand the harsh impacts and stresses of off - road riding, whether it's rocky trails, ruts, or mud. A specialized heat - treatment process further enhances the steel's hardness, ensuring long - lasting durability.

Traction

Featuring a deep and aggressive tread pattern, these wheels dig into soft terrains like mud and sand, providing maximum traction. The wide - spaced lugs eject mud and debris, preventing wheel - spin. They also offer excellent grip on hard - packed dirt, rocky surfaces, and in wet conditions, ensuring stable rides.

Compatibility & Customization

Designed to be compatible with a variety of ATV models, we offer different bolt patterns, wheel offsets, and diameters. Customization options include various finishes such as matte black, gloss silver, or powder - coated colors to match your ATV's aesthetic.

Applications

Perfect for off - road adventures, whether it's long - distance trail rides, off - road races, or mud and sand riding. The wheels' reliability and performance make them a top choice for exploring the great outdoors.

UTV Steel Wheels

Construction

Built with reinforced structures, UTV steel wheels are made from high - quality steel that undergoes a unique heat - treatment. This process boosts its hardness and toughness, enabling the wheels to handle heavy loads, such as hauling equipment or towing trailers in demanding work environments like construction sites.

Traction

The tread pattern on UTV steel wheels is engineered to provide optimal traction in different terrains. It offers excellent grip on rough and uneven surfaces, ensuring the vehicle can move forward smoothly while carrying heavy loads.

Compatibility & Customization

They are compatible with a wide range of UTV models. Similar to ATV wheels, customization options are available, allowing you to choose finishes that match your UTV's style.

Applications

Ideal for both work and recreational use. In work settings like farming and construction, they can handle heavy - duty tasks. For recreational activities such as hunting and off - road touring, they provide a comfortable and stable ride.

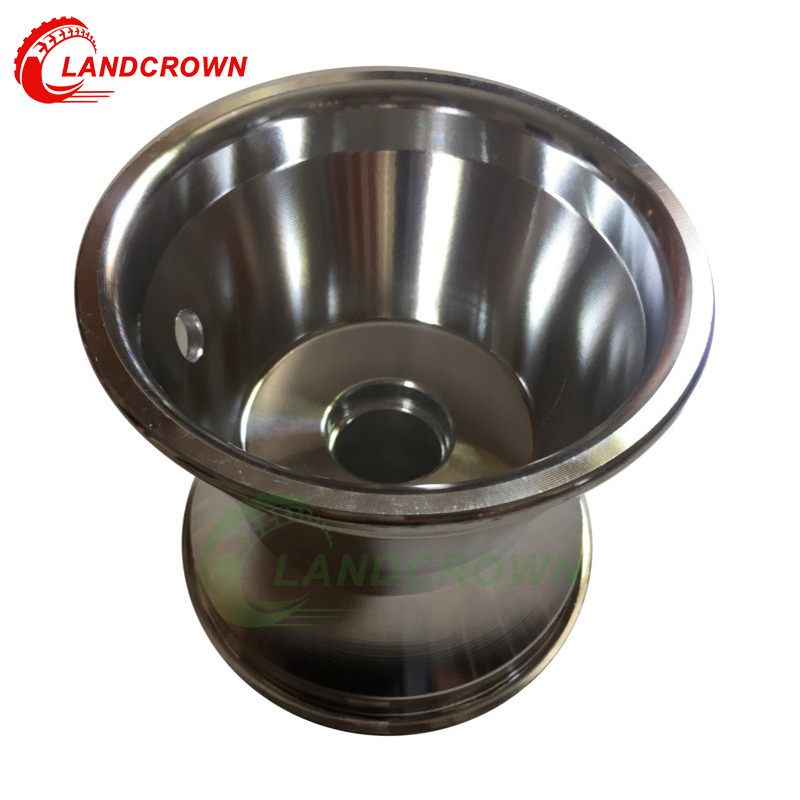

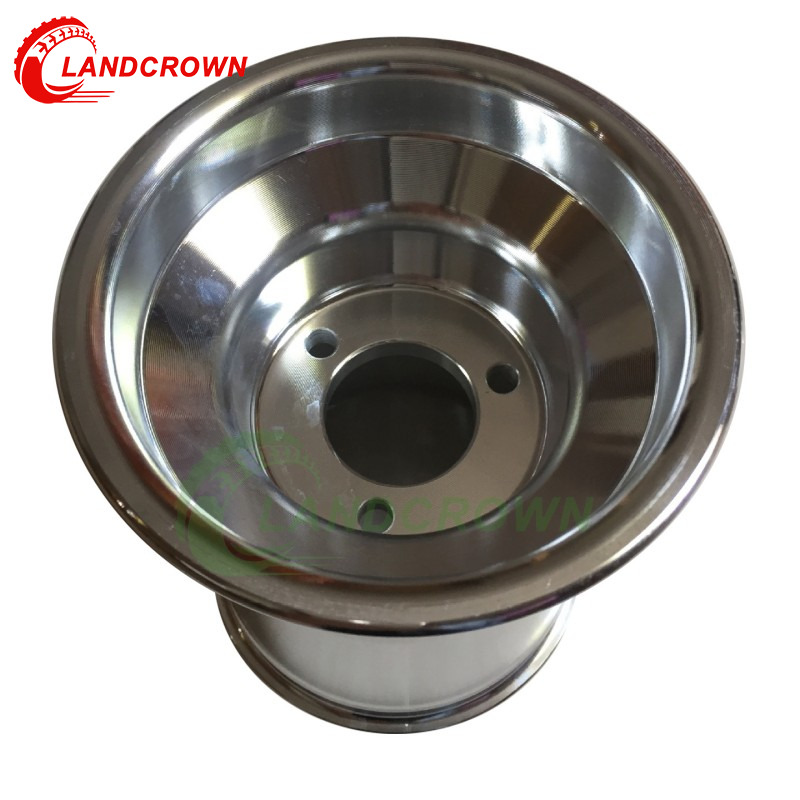

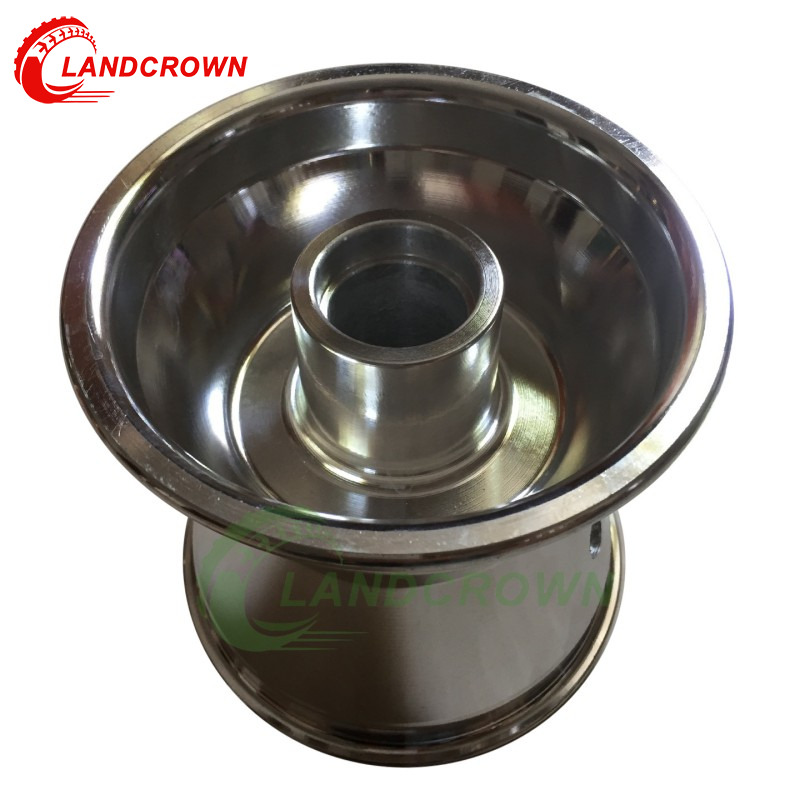

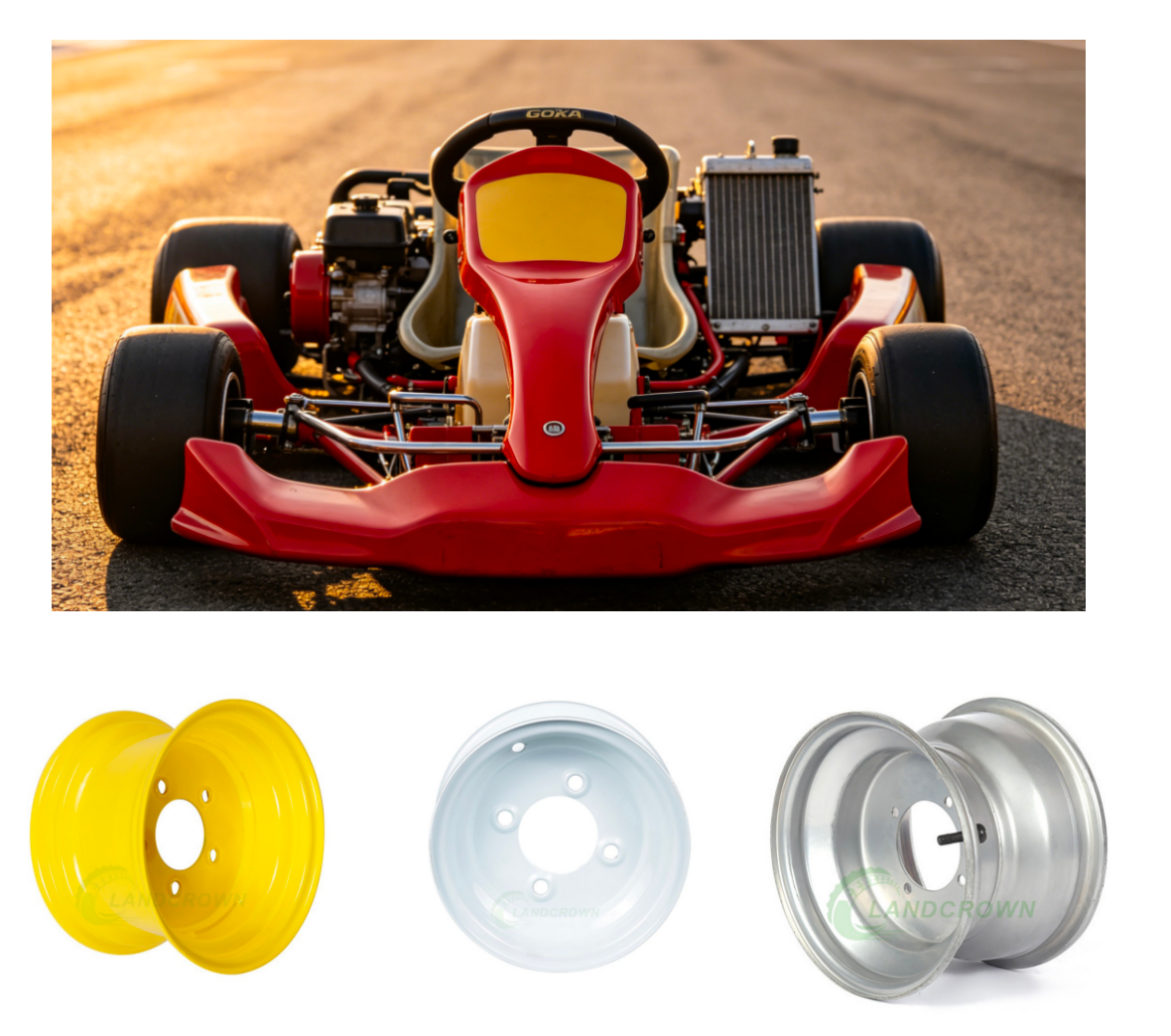

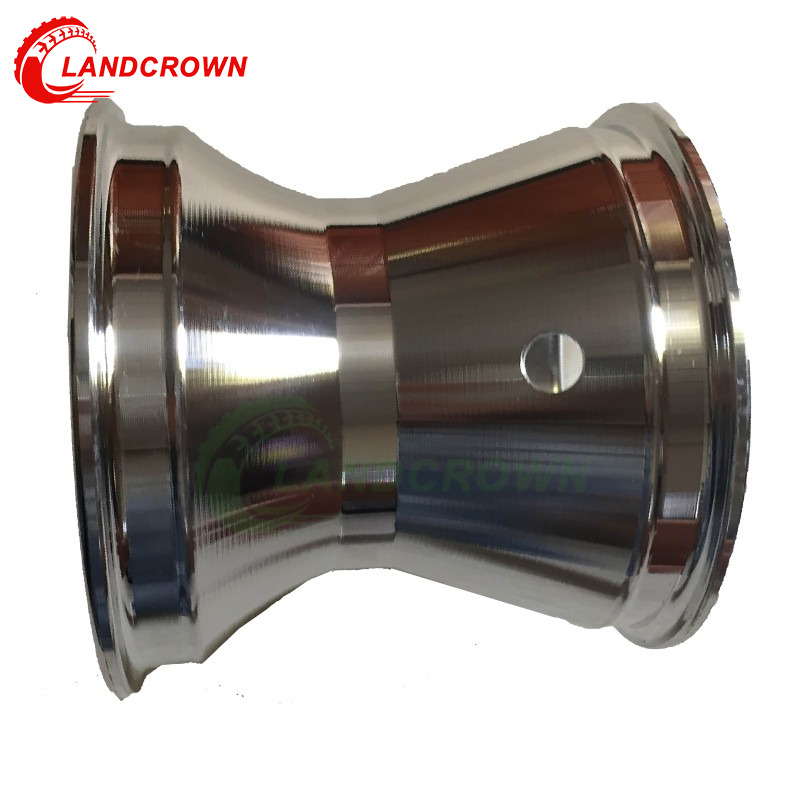

Kart Steel Wheels

Construction

Kart steel wheels are precision - manufactured from steel that strikes a balance between strength and weight. This design enables quick acceleration and precise handling on the race track. The smooth surface finish reduces rolling resistance, optimizing the kart's speed.

Traction

The tread pattern of kart steel wheels is designed for high - speed cornering and straight - line stability. Grooves and ridges channel water away in wet conditions, maintaining contact with the track surface for consistent traction.

Compatibility & Customization

Our kart steel wheels are compatible with most kart models. You can customize them with different finishes to give your kart a unique look.

Applications

Essential for racing competitions, whether professional or amateur. They give karts a competitive edge, allowing for faster lap times. They also offer a great driving experience for recreational karting at local tracks.

Quality Assurance

· Manufacturing Processes: Our steel wheels are produced using advanced technology and adhere to strict quality control standards. Every step, from raw material selection to final inspection, is closely monitored.

· Testing & Certification: All wheels undergo rigorous tests, including load - bearing, impact, and corrosion resistance tests. They comply with relevant international standards and certifications, ensuring their performance and reliability.

Why Choose Our Steel Wheels?

· Proven Reputation: With years of industry experience, our steel wheels have a well - established reputation for quality, performance, and durability.

· Customer Service: We are dedicated to providing excellent customer service. Our knowledgeable team is available to assist with any inquiries, from product selection to after - sales support.

· Competitive Pricing: We offer high - quality steel wheels at competitive prices, making premium - quality products accessible to all.
