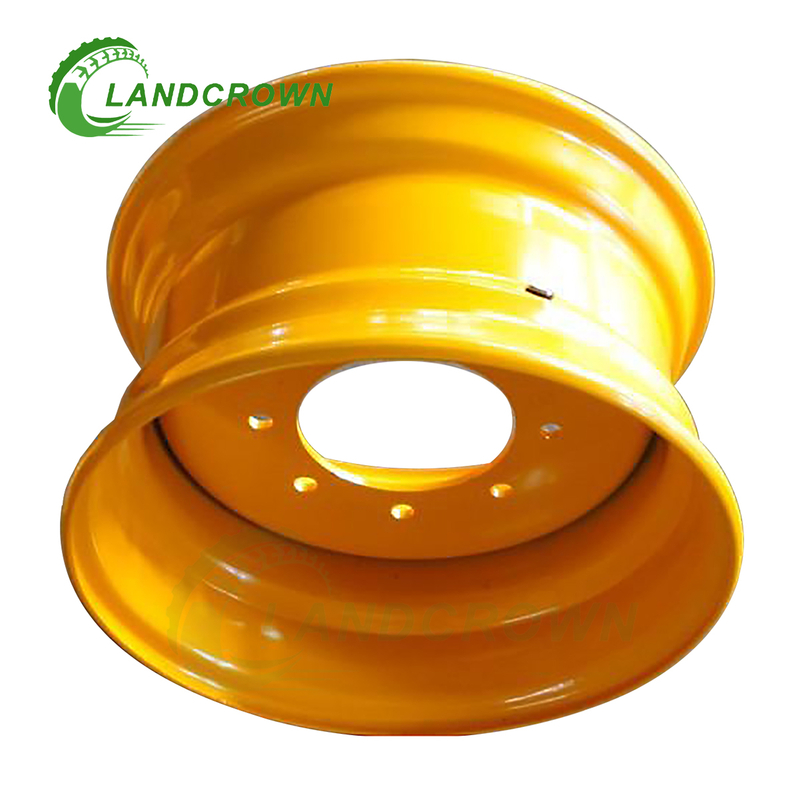

Engineering Wheel Rim 5.00F-10 for Loader OTR Tyre 6.50-10

Quantity:
Availability:





Inquire Add to Basket

Model:
5.00F-10
Brand:
RICHRISE

Product Description

Products Description

Custom Wheels: Wholesale, Retail, Brand Customization

Based on the parameters you provide, we can create detailed production blueprints and custom - make wheels.

Our product is available for wholesale and retail.

For large - scale orders, we offer brand and packaging customization. This enables you to build a unique product image that suits your business needs. ★★★ If you're unsure about the required product parameters, refer to the product measurement method at the end of the page to accurately determine the details for your order.

size	matching tires	tire type	disc type	offset /mm	assembly height /mm	center hole /mm	bolt hole D.I.A	bolt hole	P.C.D /mm
5.00F-10	6.50-10	inner tube	plate	-6	63.5	φ150	φ17	8	φ180
5.00F-10	6.50-10	inner tube		0		φ130	φ17	8	φ160
5.00F-10	6.50-10	inner tube	plate	-6	63.5	φ130	φ16	8	φ160
5.00F-10	6.50-10	inner tube	plate	-19	50.5	φ150	φ17	6	φ180
5.00F-10	6.50-10					φ150	φ17.5	8	φ180
5.00F-10	6.50-10	solid tire	plate	-6	63.5	φ150	φ17	8	φ180
5.00F-10	6.50-10	inner tube		0		φ150	φ17	6	φ180
5.00F-10	6.50-10	solid tire	plate	-19	50.5	φ150	φ17	6	φ180
5.00F-10	6.50-10	solid tire		0		φ150	φ17	6	φ180

16.5x9.75 01_副本 16.5x9.75 06_副本 01 白底图logo

MEASURING METHOD

12X16.5 测量汇总(1)

Still can't figure out which wheel is your ideal match? No sweat! Our team is fully dedicated to customized production using thes amples you send over. Just pack up those samples and mail them right over to us, and let's get started on creating the perfect wheel tailored just for you.

1. Highlighting Uniqueness
* Get one - of - a - kind products from your samples, tailored to your specs.
* Create unique, custom - designed items with sample - based service.
2. Emphasizing Precision
* Sample - based customization: replicate details for top - quality products.
* Sample - based orders ensure a perfect match with meticulous precision.
3. Stressing Flexibility
* Flexibility in sample - based customization: bring your ideas to life.
* Design products to your needs with our flexible sample - based service.
4. Focusing on Exclusive Offerings
* Access exclusive, custom - made products from your samples.
* Sample - based customization offers special, non - off - the - shelf items.
