RICHRISE W10x28 15.16.17.18.19.20.21.22.23.24.25.26.27.2 8inch Tractor Wheels Agricultural Tractor Wheel Rimfor 11.2-28 Tractor

Home » Products » Agricultural Wheel » RICHRISE W10x28 15.16.17.18.19.20.21.22.23.24.25.26.27.2 8inch Tractor Wheels Agricultural Tractor Wheel Rimfor 11.2-28 Tractor

RICHRISE W10x28 15.16.17.18.19.20.21.22.23.24.25.26.27.2 8inch Tractor Wheels Agricultural Tractor Wheel Rimfor 11.2-28 Tractor

RICHRISE W10x28 15.16.17.18.19.20.21.22.23.24.25.26.27.2 8inch Tractor Wheels Agricultural Tractor Wheel Rimfor 11.2-28 Tractor

Quantity:
Availability:





Inquire Add to Basket

Product Description

Products Description

Custom Wheels: Wholesale, Retail, Brand Customization

Based on the parameters you provide, we can create detailed production blueprints and custom - make wheels.

Our product is available for wholesale and retail.

For large - scale orders, we offer brand and packaging customization. This enables you to build a unique product image that suits your business needs. ★★★ If you're unsure about the required product parameters, refer to the product measurement method at the end of the page to accurately determine the details for your order.

型号 Wheel Size	匹配轮胎 Tire Size	中孔 Center Hole (mm)	分布圆 P.C.D(mm)	螺孔数 Bolt Hole	螺栓孔径 Hole DIA. (mm)	组合方式 Combination mode	偏距 Offset(mm)
W8x28	9.5-28	120/130	165	6	20	焊接Welding/ 螺栓Bolt	50/69
W10x28	11.2-28	141	180	6	17			30/50/117
W11x28	12.4-28	141	190	6	17			53
W12x28	13.6-28	152.4	203.2	6	17/18/21			0/70
W13x28	14.9-28	160	240	8	24	焊接Welding/ 螺栓Bolt/ 支架Flange	80
W15Lx28	16.9-28	220/221	275	8	21			5/45/112
DW13x28	14.9-28	281	335	0	21			40
DW15Lx28	16.9-28	290	330	8	17			0

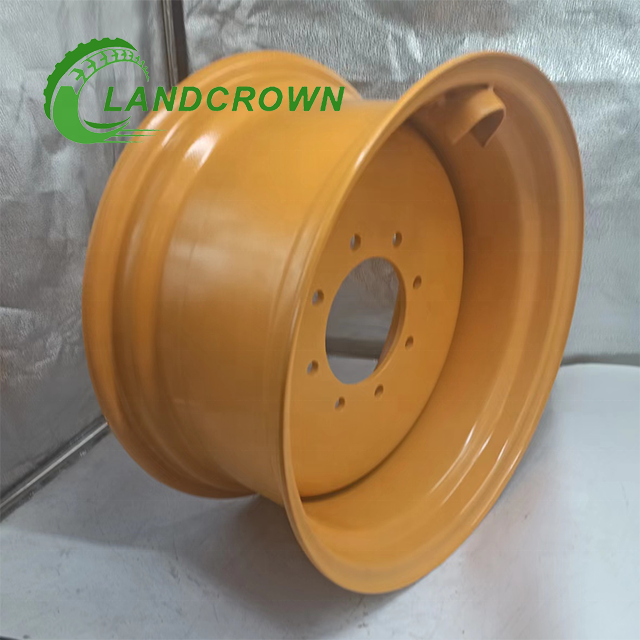

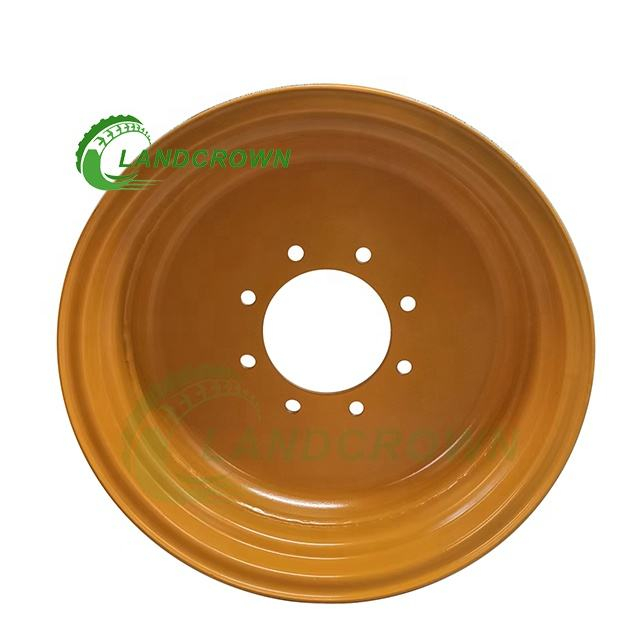

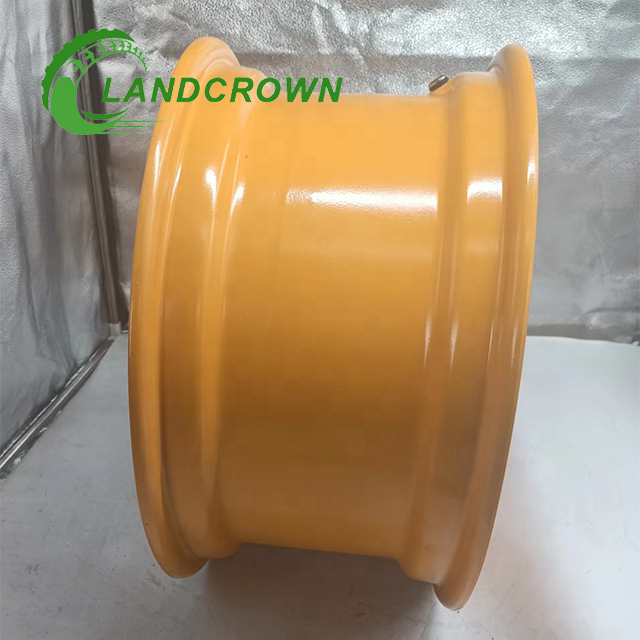

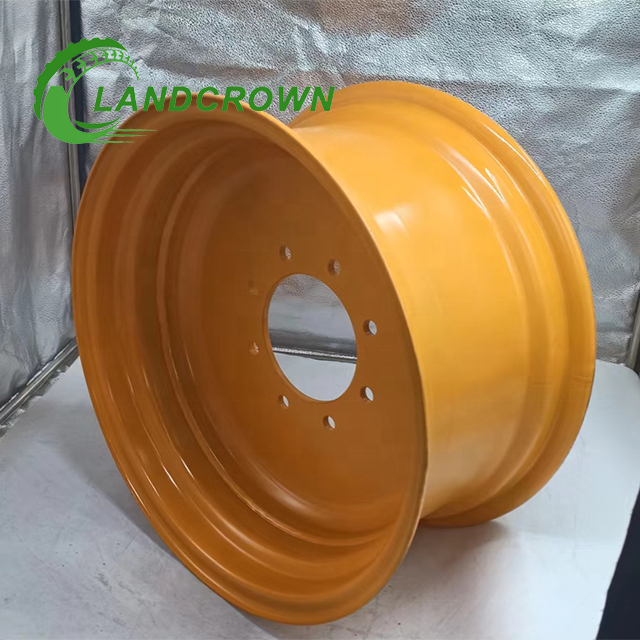

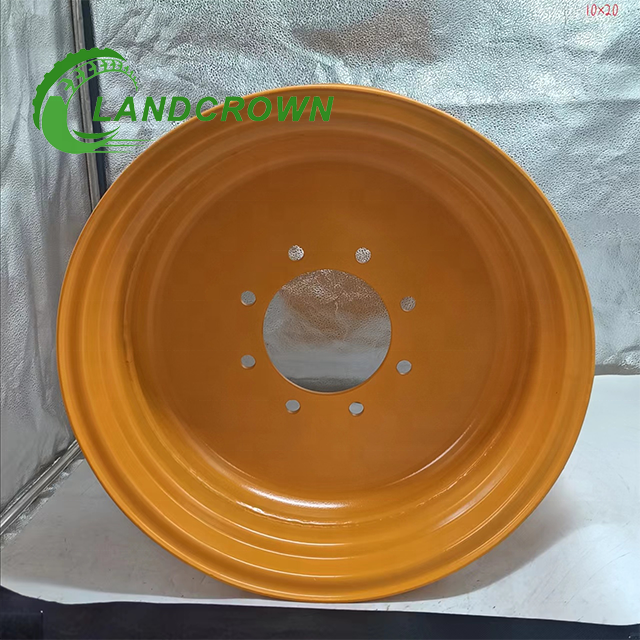

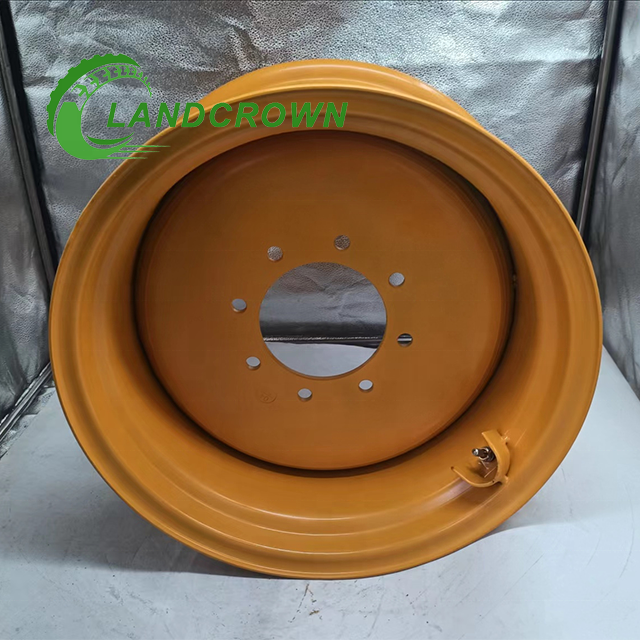

TRACTOR WHEEL RIM

HARVESTING LOCOMOTIVE WHEELS

WHEEL OF A COTTON-PICKING MACHINE

00:08

01:51

Recommend Products

Product Paramrter

Wheel Size	Bolt hole NO.	Bolt hole diameter	P.C.D.	C.B.D.	offset	Euipped with tyre
4.00Ex15	5	15	140	96	25	5.00-15
4.00Ex16	4	17	127	92.2	10	5.00-16
5.5Fx16	6	19	152	117.7	0	7.50-16
5.5Fx20	6	19	180	141	10	7.50-20
W7x20	6	17	161	102	65	8.3-20
W7x24	6	17	161	100	15	8.3-24
W8x24	6	20	205	161	68.7	9.5-24
W10x24	6	18.5	165	120	76	11.2-24
W12x24	8	17	330	290.5	26	13.5-24
W13x24	8	18.5	203.2	152.6	26	14.9-24
W13x26	8	17	330	290.5	26	14.9-26
W10x28	8	17	203.2	151.3	4	11.2-28
W11x28	8	17	203.2	151.3	4	12.4-28
W10x32	8	17	203.2	151	4	11.2-32
W11x38	8	21	203.2	152.4	16	12.4-38
W15x38	8	19	203.2	150.1	20	16.9-38
W15x42	8	24	275	221	106	16.9-42
W16x42	8	17.5	203.2	150.1	92.5	18.4-42
W8x48	8	24	250	199	18	9.5-48
W13x48	10	26	335	282	110	14.9-48
W10x54	8	24	250	199	193	11.2-54
W11x54	10	24	335	282	221.5	12.4-54
DW15x34	8	19	203.2	152.6	18	16.9-34
		8	21.4	203.2	152.6		75
		10	24	335	281.5		0
DW12x38	8	20.5	203.2	152.4	69.5	13.6-38
DW12x38		8	20.5	203.2	152.4	13.6-38	213
DW16x42	10	24	335	281.5	38	18.4-42
		10	24	335	281.5		14
		10	24	335	281.5		177

Product Packaging

Certifications

Factory Display

1 THE FACTORY PRICE

We will provide you with quality service and preferential price,your satisfaction is our service purpose.

2 AFTER-SALES SERVICE
We have professional after-sales service,professional maintenance service department,24-hour online service for you to solve problems

3 QUALITY ADVANTAGE
Quality First.Our raw material supplier is the first-class supplier,which ensures the stability of raw material quality,thus ensuring the stability of tyre and wheel quality

4 FACTORY ADVANTAGE
We can produce mold by ourselves.We have our own mold plant.Any tire or wheel rim size that you are interested,we can do mold

Company Profile

DONGYING LANDCROWN AUTOPARTS CO. , LTD

located in Dawang town , Dongying city ,Shandong,China. We specially export TBR tires , PCR tiresagriculture tires,OTR tires,forklift tires ,motorcycle tires & all types of steel wheel rim for 10 years .

About the steel wheel rims，our company integrates R&D, design, manufacture, sale and international trade of auto spokes,structural steel wheels and tubeless wheels. As a member unit of China Auto Wheel Association, the company has passed the certifications of ISO/TS16949”, “DOT” and “TUV”, “INMETRO”with self-supported import and export rights. Our products include more than 200 models of tubeless wheels and structural steel wheels for truck, bogie, engineering van, agriculture truck and large-scale truck.

Our company would seek a sincere cooperation and common development with friends home and abroad.

FAQ

Q WHAT IS YOUR PACKING CONDITION?

A 1.Plastic Packaging; 2.Packed according to export requirements

Q CAN I MIX DIFFERENT MODELS IN ONE CONTAINER?

A Yes. You can mix and match different models in a container

Q DO I NEED TO CHECK AFTER FINAL PRODUCTION?

A No,We have a professional internal quality control team to control the final

production and post-production quality. The buyer is also allowed to inspect.

Q HOW LONG CAN I GET THE GOODS AFTER CONFIRMING THE ORDER?

A We need 10-20 days production time; if you can arrange 100% TT, we will book

the ship in advance, you need not waste time waiting for delivery.

Q CAN YOU MAKE IT ACCORDING TO THE SAMPLE?

A Yes, we can make them according to your samples or technical drawings. We

can make molds and fixtures.

Q HOW DO YOU ESTABLISH LONG-TERM AND GOOD BUSINESS

RELATIONSHIP WITH US?

A 1. We maintain good quality and competitive prices to ensure that customers

benefit;

2. We respect each customer as our friend and we sincerely do business with

them and make friends with them no matter where they come from.

MEASURING METHOD

WHEEL WIDTH

BOLT HOLE DIAMETER

Pitch Circle Diameter

Diameter Of Center Hole

OFFSET 01

OFFSET 02

Still can't figure out which wheel is your ideal match? No sweat! Our team is fully dedicated to customized production using thes amples you send over. Just pack up those samples and mail them right over to us, and let's get started on creating the perfect wheel tailored just for you.

1. Highlighting Uniqueness
* Get one - of - a - kind products from your samples, tailored to your specs.
* Create unique, custom - designed items with sample - based service.
2. Emphasizing Precision
* Sample - based customization: replicate details for top - quality products.
* Sample - based orders ensure a perfect match with meticulous precision.
3. Stressing Flexibility
* Flexibility in sample - based customization: bring your ideas to life.
* Design products to your needs with our flexible sample - based service.
4. Focusing on Exclusive Offerings
* Access exclusive, custom - made products from your samples.
* Sample - based customization offers special, non - off - the - shelf items.
