Introduction

Pre-shipment quality inspection is the most critical step to avoid dimensional errors, quality defects, cargo returns, and after-sales disputes. A standardized inspection process can fully verify the compliance of truck steel wheels and forged aluminum truck wheels, ensuring that all products match customer order requirements and international vehicle safety standards. Based on LANDCROWN’s decades of production and export experience, this article sorts out a complete pre-shipment inspection checklist for bulk truck wheel orders, covering specification confirmation, category-based inspection, quality document verification, packaging & container loading check, and inquiry parameter preparation.

1. How to Confirm Wheel Specifications

Wrong specification matching is the top reason for truck wheel order errors. All parameters must be strictly verified against official product drawings before shipment, and no visual estimation is allowed. The core inspection items include size, bolt hole number, PCD, center bore, offset, and load capacity, which determine whether the wheel can be perfectly adapted to the target truck model, tire size, and bearing safety standards.

Core Specification Inspection Items

• Wheel Size: Common commercial vehicle specifications such as 17.5×6.0, 22.5×8.25, 24.5×8.25. Check rim width and outer diameter tolerance to ensure compliance with drawing standards (diameter tolerance ±0.5mm, width tolerance ±0.8mm).

• Bolt Hole Number & PCD: Verify hole quantity (6/8/10 holes) and pitch circle diameter. Ensure uniform hole spacing to avoid installation deviation and bolt loosening during driving.

• Center Bore: Confirm the center hole diameter matches the vehicle hub size. An unqualified center bore will cause wheel shaking and poor centering.

• Offset (ET Value): Strictly check the offset data to ensure the wheel fits the vehicle suspension and fender position, avoiding friction and installation failure.

• Rated Load Capacity: Verify the maximum bearing load of a single wheel. It must meet the load requirements of the target vehicle and road conditions to ensure driving safety.

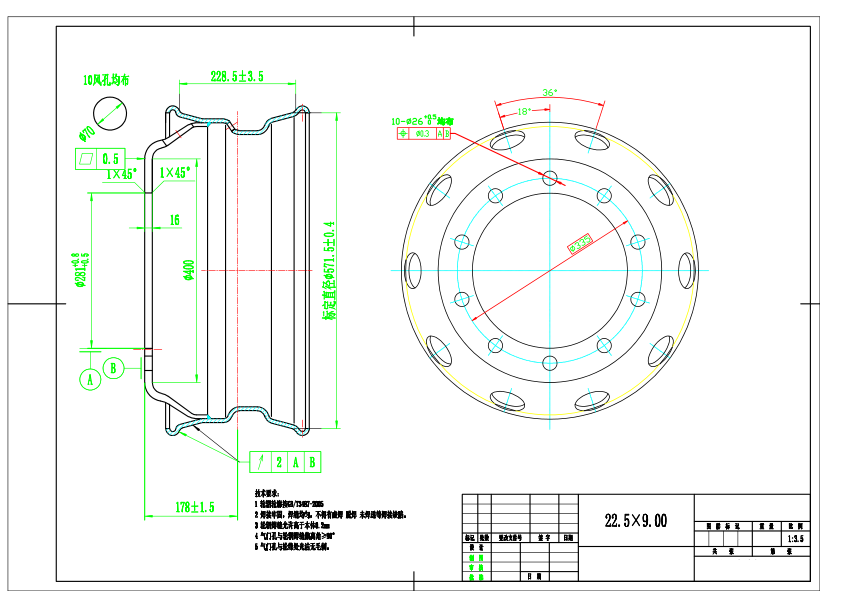

Image Note: LANDCROWN official truck wheel dimension drawing. This drawing records all dimensional tolerances and load parameters, supporting buyers’ on-site inspection and order parameter verification.

2. Inspection Standards for Steel Wheels & Forged Aluminum Wheels

LANDCROWN implements two-tier inspection standards for all truck wheels: pre-shipment routine inspection (100% full inspection) and type test (sampling laboratory test). Steel wheels and forged aluminum truck wheels have different inspection focuses due to different production processes and material characteristics, complying with ISO 3894:2023 and GB/T 5909-2021 commercial vehicle wheel safety standards.

2.1 Truck Steel Wheel Inspection

Pre-shipment Routine Full Inspection: 100% visual appearance check, no cracks, slag inclusions, scratches and deformation on rim and spoke surface; full dimensional tolerance detection, radial and lateral runout ≤1.2mm; coating inspection, paint thickness ≥15μm, uniform coating without peeling and rust spots; dynamic balance test, unbalance weight ≤50g to ensure stable high-speed driving.

Laboratory Type Test (Sampling): Dynamic radial fatigue test, dynamic cornering fatigue test, neutral salt spray test (≥72 hours), paint adhesion and hardness test (paint hardness ≥2H, adhesion level 0-1), verifying structural durability and corrosion resistance of steel wheels.

2.2 Forged Aluminum Truck Wheel Inspection

Pre-shipment Routine Full Inspection: 100% surface polishing and oxidation layer inspection, no pinholes, sand holes, oxidation spots and edge chipping; precise dimensional calibration of forged molding parts; air tightness test to ensure no air leakage; appearance defect screening of forged grain structure.

Laboratory Type Test (Sampling): 13° impact test for light alloy wheels, fatigue durability test, load limit test, metallographic structure inspection and chemical composition analysis, ensuring the high strength and impact resistance of forged aluminum wheels under heavy load.

3. Quality Documents Wholesale Buyers Need

To support customers’ customs clearance, market sales and after-sales guarantee, LANDCROWN provides complete official quality documents for each batch of truck wheel orders. All documents correspond to the actual shipment models one by one, with valid and traceable data.

• Official Product Drawings: Complete dimension drawings with tolerance parameters, load marks and installation specifications, supporting customer technical verification and secondary sales.

• Batch Inspection Test Reports: Factory inspection reports of the current batch, including appearance, size, balance, coating and performance test data.

• Product Certification Documents: ISO certification, factory qualification certificate, product safety compliance certificate, applicable to global market access standards.

• Applicable Scope Instructions: Detailed description of applicable truck models, tire matching standards, load limits and service scenarios to guide customers’ accurate sales and matching.

4. Packaging & Container Loading Verification

Unstandardized packaging and loading are easy to cause wheel surface scratches, paint peeling and quantity errors during transportation. LANDCROWN adopts exclusive wholesale packaging solutions, and conducts full inspection before container shipment to ensure intact cargo.

4.1 Packaging Inspection Items

• Surface Protection: Each wheel is wrapped with anti-scratch film and bubble wrap; hub holes are equipped with protective caps to prevent collision and extrusion damage.

• Standard Packaging Method: Steel wheels use carton + wooden pallet packaging; forged aluminum wheels use reinforced carton + customized foam fixing to avoid friction abrasion.

• Quantity Verification: Count the number of single pallet products one by one, and check the total quantity of the batch to ensure consistency with the order contract.

• Mark Verification: Check shipping mark information (model, quantity, destination, batch number) to ensure clear and accurate marking, convenient for customer customs clearance and warehouse inventory.

4.2 Container Loading Inspection

Fix pallets tightly during container loading to avoid shaking and extrusion during sea transportation; classify and place different models separately, attach labels clearly; take full container loading photos and videos for customer filing.

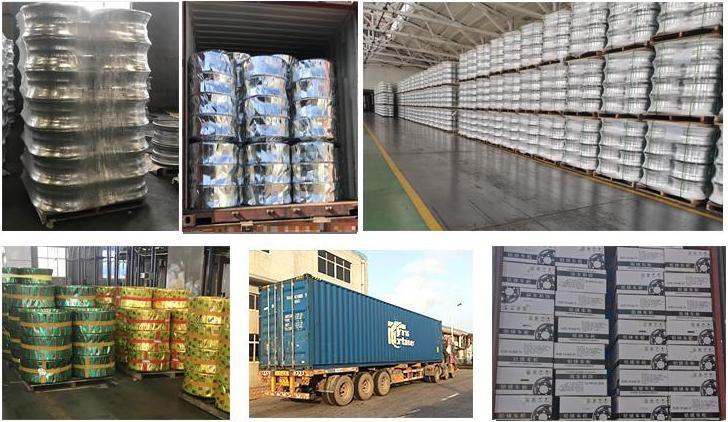

Image Note: LANDCROWN actual packaging and container loading photos.

5. Required Information for Accurate Inquiry

To provide customers with accurate quotation, matching scheme and delivery cycle, buyers need to provide complete matching parameters when inquiring. Complete information can avoid repeated communication and parameter mismatch errors.

• Target Truck Model: Specific truck, trailer or bus brand and model, confirming vehicle assembly standards.

• Tire Model: Matched tire specification, to ensure the wheel rim width and diameter fit the tire perfectly.

• Wheel Rim Parameters: Confirmed size, hole number, PCD, center bore, offset and load requirements.

• Order Quantity: Total order quantity and batch delivery plan.

• Destination Port: Target port and country, to confirm shipping cost, customs clearance documents and delivery cycle.

Conclusion

Standardized pre-shipment quality inspection is the core guarantee for LANDCROWN as a professional truck wheel manufacturer and supplier to serve global wholesale buyers. From parameter confirmation, differentiated quality inspection, document verification to packaging and loading inspection, every link implements strict factory standards. We insist on real production inspection experience and original on-site materials to provide reliable high-quality truck steel wheels and forged aluminum truck wheels for global customers.
