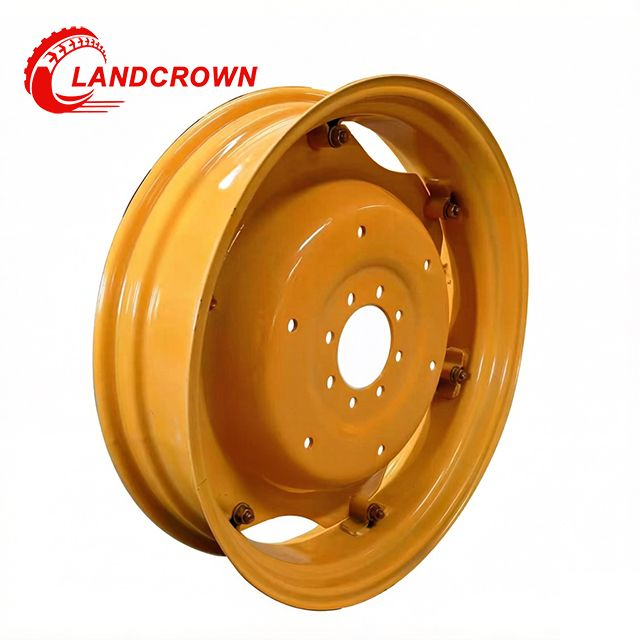

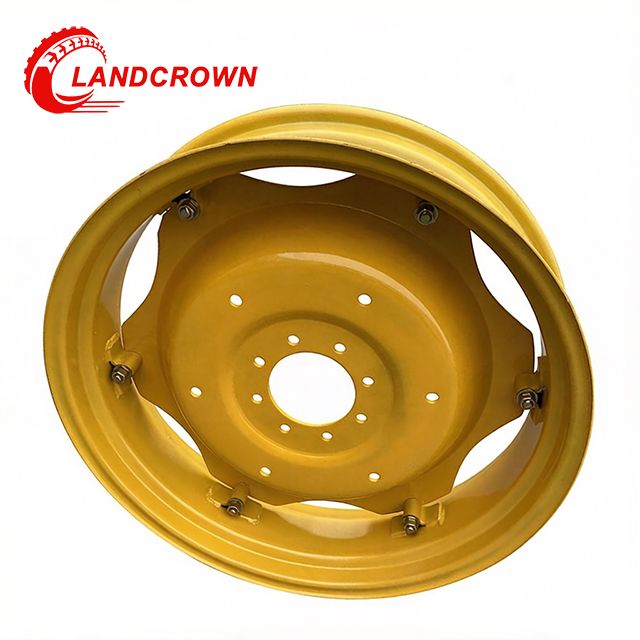

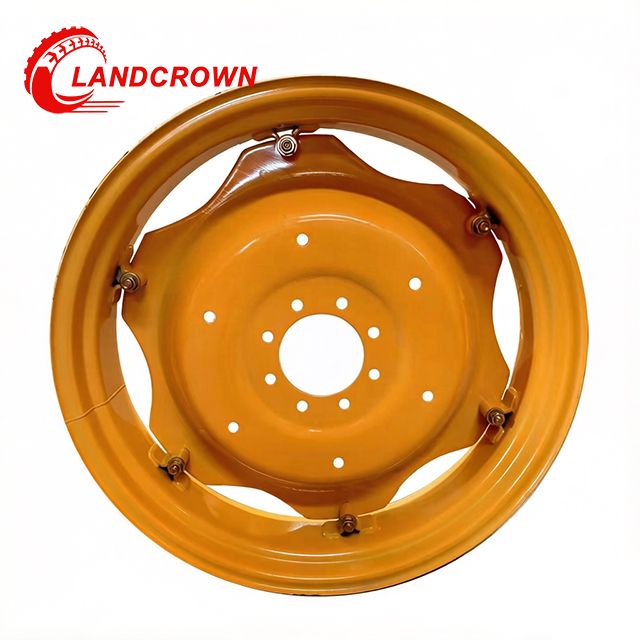

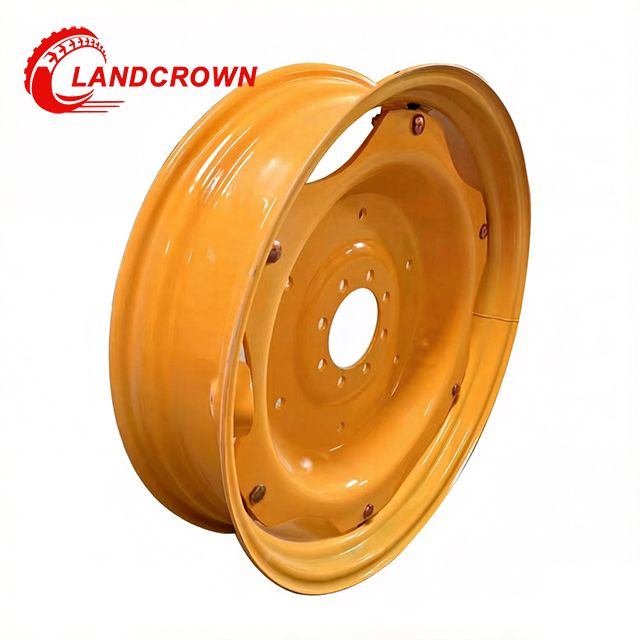

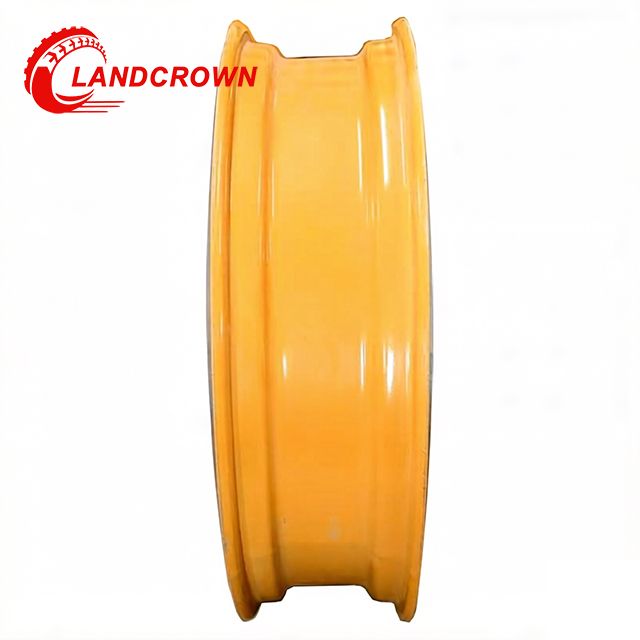

W12x24 Agricultural Tractor Wheel Rim -Compatible with 13.6-24 Tractor Tires

Home » Products » Tractor Wheel » W12x24 Agricultural Tractor Wheel Rim -Compatible with 13.6-24 Tractor Tires

W12x24 Agricultural Tractor Wheel Rim -Compatible with 13.6-24 Tractor Tires

Wheel Size:24 Inch W12x24
Product name:tractor/agricultural wheel rim
Assembled Tire Size:13.6-24
Material:Steel 380CL/400CL
Type:tractor accessories,agriculture accessories
BRAND:LANDCROWN ,RICHRISE
OEM:Support
Certification:1S09001/TS16949,INMETRO, EAC
MOQ :50PCS
Replacement wheel rims for tractor/agricultural machinery :John Deere,Case IH,New Holland, Massey Ferguson,CLAAS,Kubota,Mahindra,Yanmar, Deutz-Fahr,Valtra,Fendt and other global brands.
Color Options: Silver/white/yellow/green/blue etc. (can be customized)
Quality Guarantee:3 Year
Place of Origin: Shandong, China (Mainland)

Quantity:
Availability:





Inquire Add to Basket

Model:
W12x24
Brand:
RICHRISE

W12x24 AGRICULTURAL WHEEL RIM SPECIFICATIONS

农机轮-模板

WheelSize 型号（配用轮胎）	C.B.D. 中心孔	P.C.D. 分布圆	bolt hole螺孔数	bolted connection孔径	connection type连接方式	offset偏距
W12x24	102	161	6	17	soldering	50
	120	165	6	20	bolted connection	7/69/50/65/15/0/98/-10
	123	165	6	20	bolted connection	10/15/42
	130	165	6	17	bolted connection	0/54/85
	132	165	6	17	bolted connection	62.5
	136	170	6	19	full-length welding	160
	140	210	8	23	soldering	22/91
	140	180	6	17	soldering	42/70
	141	180	6	17	soldering	0/22/47.5/70
	145	210	8	21	soldering	92
	152.4	203.2	8	17	bolted connection	0/50/100
	155	203.2	8	17	soldering	60
	155	205	8	20	soldering	0/10
	161	210	8	21	full-length welding	55
	161	205	6	21	soldering	50
	218	335	10	21	bolted connection
	218	335	10	21	bolted connection
	220	275	8	22	full-length welding	0
	220	275	8	21	soldering	30
	221	275	8	22	bolted connection	20
	250	285	6	17	bolted connection	4.5/62.5/54
	290.5	330	8	17	bolted connection	0/66/74/78
	290.5	330	8	17	soldering	132
