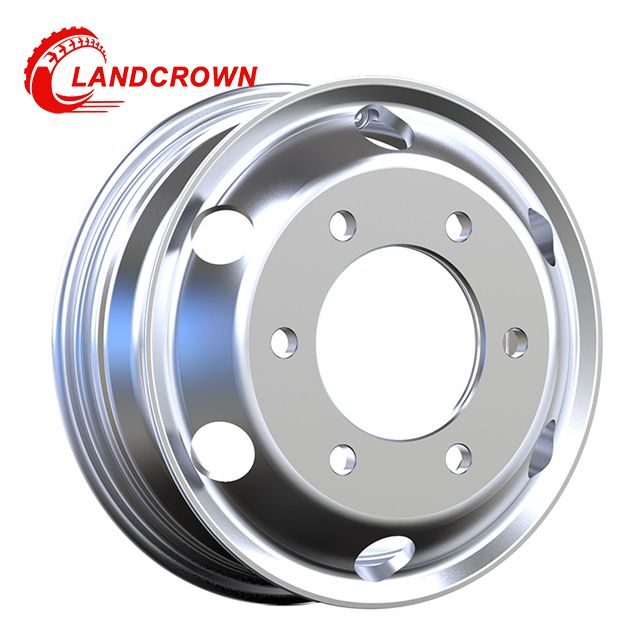

Wheel Size: 16x5.5
Assembled Tire Size:205/55R16,215/85R16,7.00/7.50R16,8.25R16
Material: Aluminum T6061
Type: Aluminum truck wheel rim
BRAND :LANDCROWN ,RICHRISE
Certification:ISO / DOT / INMETRO / TUV
Surface Treatment:Machined/Double Polished/One-sided polished
Load Capacity: 1320KGS;
MOQ : 50PCS
Color Options: Customized
Quality Guarantee:3-5 Year Warranty
Place of Origin: Shandong, China (Mainland)
| Quantity: | |
|---|---|
5.5x16
RICHRISE
| 车轮尺寸 Wheel Size | 内偏距Inset (mm) | 外偏距Outset （mm） | 螺栓孔数x螺栓孔节圆直径P.C.D（mm） | 中心孔直径C.B.D （mm） | 螺栓孔直径 Bolt Hole Dia. (mm) |
| 16X5.5K | 103 | 118 | 6x∅222.25 | ∅164 | ∅24 |
| 16X5.5K | 103 | 118 | 6x∅222.25 | ∅164 | ∅24 |
| 16X5.5K | 103 | 118 | 6x∅222.25 | ∅164 | ∅32.5SR22 |
| 16X5.5K | 102 | 118 | 6x∅222.25 | ∅164 | ∅32.5SR22 |
| 16X5.5K | 102 | 118 | 6x∅205 | ∅161 | ∅24 |
| 16X5.5K | 102 | 118 | 5x∅203.2 | ∅146 | ∅24 |
| 16X5.5K | 102 | 118 | 5x∅203.2 | ∅146 | ∅32.5SR22 |
| 16X5.5K | 102 | 118 | 6x∅222.25 | ∅161 | ∅24 |
| 16X5.5K | 102 | 118 | 6x∅222.25 | ∅164 | ∅24 |
| 16X5.5K | 102 | 118 | 5x∅203.2 | ∅146 | ∅32.5SR22 |
| 16X5.5K | 102 | 118 | 5x∅203.2 | ∅146 | ∅21 |
| 16X5.5K | 102 | 118 | 6x∅190 | ∅141 | ∅32.5SR22 |
| 16X5.5K | 102 | 118 | 6x∅190 | ∅141 | ∅20.5SR22 |
| 16X5.5K | 102 | 118 | 5x∅203.2 | ∅146 | ∅21 |
| 16X5.5K | 102 | 118 | 6x∅222.25 | ∅161 | ∅26 |
| 16X5.5K | 102 | 118 | 6x∅190 | ∅141 | ∅21 |
| 16X5.5K | 102 | 118 | 6x∅190 | ∅140 | ∅21 |
| 16X5.5K | 102 | 118 | 6x∅190 | ∅140 | ∅24 |
| 16X5.5K | 102 | 118 | 5x∅203.2 | ∅146 | ∅29SR22 |
| 16X5.5K | 102 | 118 | 6x∅203.2 | ∅146 | ∅26 |
| 16X5.5K | 99 | 115 | 5x∅208 | ∅150 | ∅32.5SR22 |
| 16X5.5J | 100.5 | 116.5 | 5x∅203.2 | ∅146 | ∅32.5SR22 |
| 16X5.5J | 100.5 | 116.5 | 5x∅203.2 | ∅146 | ∅32.5SR22(带沉孔） |
| 16X5.5J | 99 | 115 | 5x∅208 | ∅150 | ∅32.5SR22(带沉孔） |
| 16X5.5K | 102 | 118 | 5x∅203.2 | ∅146 | ∅32.5SR22 |
| 16X5.5J | 100 | 116 | 5x∅203.2 | ∅145 | ∅29SR22 |
| 16X5.5K | 102 | 118 | 5x∅203.2 | ∅146 | ∅32.5SR22 |
| 16X5.5K | 102 | 118 | 6x∅190 | ∅141 | ∅20.5SR22 |
| 16X5.5K | 102 | 118 | 6x∅222.25 | ∅164 | ∅24 |
| 16X5.5K | 102 | 118 | 6x∅222.25 | ∅161 | ∅32 |
| 16X5.5K | 102 | 118 | 6x∅190 | ∅140 | ∅21 |
| 16X5.5K | 102 | 118 | 6x∅222.25 | ∅163 | ∅32.5SR22 |
| 16X5.5K | 102 | 118 | 6x∅222.25 | ∅164 | ∅26 |
| 16X5.5K | 110 | 126 | 6x∅222.25 | ∅161 | ∅24 |
| 16X5.5K | 110 | 126 | 6x∅222.25 | ∅164 | ∅32.5SR22 |
| 16X5.5J | 110 | 126 | 6x∅222.25 | ∅161 | ∅26 |
| 16X5.5K | 110 | 126 | 5x∅203.2 | ∅145.2 | ∅21 |
| 16X5.5K | 110 | 126 | 5x∅203.2 | ∅146 | ∅29SR22 |
| 16X5.5K | 110 | 126 | 6x∅205 | ∅161 | ∅21 |
| 16X5.5K | 110 | 126 | 6x∅205 | ∅161 | ∅16 |
Production Process
Aluminum Alloy Wheel Material Selection
Forging Process
Packaging and Shipping
FAQ
| Q1: What material are your truck aluminum wheels made of? |
| Each forged aluminum wheels are from one piece of 6061-T6 high-strength aluminum blank. |
| The 6061 aluminum consists of silicon,cooper,manganese,magnesium,zinc,ETC. And after the Homogenizing the wheel will become more denser and stronger. |
| Q2: What warranty do you provide for the truck aluminum wheels? |
| 3 year warranty. Under normal use, wheels with weld cracking, air leakage, or deformation will be compensated in the next order. |
| Q3: What certifications do your truck aluminum wheels hold? |
| ISO9001, TUV, INMETRO, and DOT. |
| Q4: Which countries and regions do you export to? |
| Our products are sold to markets worldwide, covering the Middle East, South America, North America, Africa, Europe, Asia, and other countries and regions. |
| Q5: Do you support customization of the truck aluminum alloy wheels? |
| Yes, we support customization for full container orders, including color and brand/logo options. We also offer mold development to create exclusive wheel designs tailored to your needs. |
| Q6: Are you a manufacturer or a trading company? |
| We are a professional truck aluminum wheel manufacturer in China, with advanced production equipment and strict quality control systems. We provide OEM services and bulk supply for global distributors and wholesalers. |
| Q7: What surface treatment do your truck aluminum wheels use? |
| Our truck aluminum wheels use advanced surface coating technology to ensure corrosion resistance and durability, including: |
| ·Machined |
| ·Inside or out side polished |
| ·Double side polished |
| This ensures the wheels perform well in harsh environments such as humidity, salt spray, and heavy-duty transport conditions. |
| Q8: How do you ensure the quality of your truck aluminum wheels? |
| We have a complete wheel testing laboratory and professional inspection equipment. Key tests include: |
| ·Radial fatigue test |
| ·Bending fatigue test |
| ·Impact test |
| ·Air tightness test |
| ·Dynamic balance inspection |
| All products comply with international standards to ensure safety and reliability. |
| Q9: Are your truck aluminum wheels suitable for well-known truck brands? |
| Yes. Our wheels are designed to be compatible with many global truck brands, such as: Volvo Trucks; Scania; Mercedes-Benz Trucks; MAN; Howo. They are widely used for truck and trailer replacement markets. |
| Q10: How long can i get the goods after confirming the order? |
| We need 10-20 days production time; if you can arrange 100% TT, we will book the ship in advance, you need not waste time waiting for delivery. |
| Q11: What is your packing condition? |
| 1.by carton box |
| 2.by the pallet |
| Q12: Can i mix different models in one container? |
| Yes. You can mix and match different models in a container. |
