How To Check Steel Truck Wheel Rim Quality

Introduction

Steel truck wheel rims are core load-bearing components for heavy-duty trucks, semi-trailers and logistics vehicles. Poor-quality tubeless steel truck wheel rims lead to tire air leakage, rim cracking, vehicle vibration, blowout risks and major traffic accidents. Whether you purchase mainstream sizes including 22.5x8.25, 22.5x9.00, 22.5x11.75 tubeless steel truck wheel rim, or other specifications like 22.5x13.00, 17.5x6.75, 19.5x6.0 truck steel wheels, systematic quality inspection is mandatory before delivery and installation.

For qualified factory-manufactured steel truck wheels with full quality control, visit the official product page: https://www.landcrownwheel.com/Truck-Steel-Wheel-pl48064886.html

1. Visual Surface Inspection: Basic First-Step Quality Check

Visual inspection is the simplest screening method for all steel truck wheel rims. Inspect every surface including bead seat, flange, spoke plate, bolt hole and inner gutter area.

Key Inspection Items

1.1 Crack & Fracture Check

No circumferential cracks, radial cracks, welding cracks or micro-cracks on the rim gutter, back flange and bead seat. Discard any cracked steel wheel rim directly, never repair by welding.

1.2 Corrosion & Coating Condition

Qualified tubeless steel truck wheel rims adopt uniform electrophoretic paint or powder coating with thickness 50–100μm. Check for rust pits, peeling paint, blistering and deep corrosion pitting. Severe pitting reduces rim structural strength and causes slow air leakage for tubeless tires.

1.3 Deformation & Dent Inspection

Check flanges and side rings for bending, collision dents and uneven distortion. Measure bead seat flatness by hand; deformed rims cause tire offset and abnormal tire wear.

1.4 Machining Defect Check

No sharp burrs, deep tool scratches, uneven welding seams or bulge protrusions on bolt holes and rim body. Rough machining scratches become stress concentration points under long-distance transportation loads.

2. Precision Dimensional Testing: Match Tire & Hub Compatibility

Size accuracy directly determines tire assembly tightness and running stability. Professional factories use three-coordinate measuring instruments, rim diameter gauges and width calipers to test full dimensions of tubeless steel truck wheel rims, complying with GB/T 5909 and international commercial vehicle wheel standards.

Core Dimension Standards

2.1 Rim Width Tolerance

· 22.5x8.25 truck steel rim: Standard width 8.25 inch, tolerance ±0.5mm, matched for 11R22.5, 275/70R22.5 tires

· 22.5x9.00 tubeless steel wheel rim: Nominal width 9.00 inch, suitable for 295/80R22.5, 12R22.5 tires, widely used in medium-heavy haulage trucks

· 22.5x11.75 wide-base steel truck rim: Extra-wide design for 445/65R22.5 super single tires, strict width control to avoid tire sidewall extrusion damage

2.2 Radial & Lateral Runout Test

DetectionUse dial indicator runout testing equipment to measure full-circle rotation deviation.Qualified tubeless truck steel wheel rim total runout must not exceed 0.125 inch. Excessive runout triggers high-speed vehicle shaking, steering vibration and premature tire failure.

2.3 Bolt Hole & Center Hole PrecisionCheck

Bolt hole position degree, aperture and center hole coaxiality. Deviated bolt holes cause uneven fastening force and rim fatigue fracture during driving.

2.4 Bead Seat Profile Consistency

The arc of bead seat must perfectly fit tubeless tire beads; mismatched profiles lead to constant air leakage, the most common failure of low-quality steel truck wheel rims.

3. Professional Testing Equipment & Lab Performance Tests

To verify long-term load resistance and durability of truck steel wheel rims, manufacturers adopt dedicated wheel testing machines for destructive and accelerated aging tests.

Main Truck Wheel Rim Testing Equipment

3.1 Bending Fatigue Tester

Dynamic Bending Fatigue Test BenchSimulate repeated bending stress during truck turning. Standard steel truck rims must withstand over 600,000 rotation cycles without crack propagation. For heavy-load 22.5x11.75 wide rims, the test load coefficient is increased by 15% to match ultra-wide single tire load demands.

3.2 Radial Fatigue Test Bench

Radial Fatigue Testing MachineSimulate vertical vehicle load on rough roads. 22.5x8.25 and 22.5x9.00 standard tubeless steel wheel rims pass 500,000 cycle radial fatigue tests without permanent deformation or air leakage after inflation pressure retention test.

3.3 Nondestructive Testing Devices

· Magnetic particle flaw detector: Detect invisible micro-cracks inside steel wheel rims

· Ultrasonic flaw detector: Inspect internal material defects and welding layer gaps

· Dye penetrant tester: Screen tiny surface cracks on bead seats and flanges

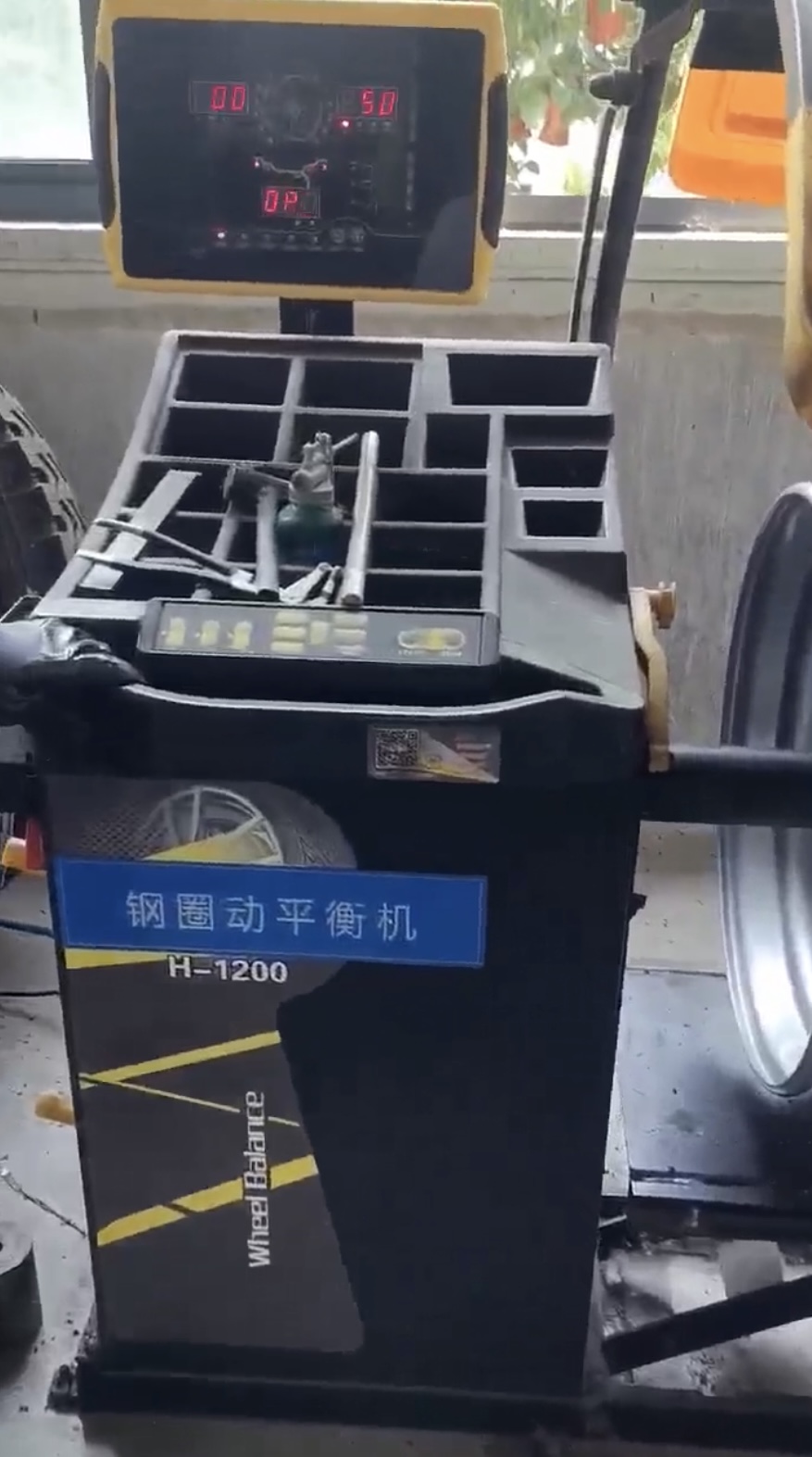

3.4 Dynamic Balancing Tester

All tubeless steel truck wheel rims require dynamic balance correction; residual unbalance must be lower than 15g・mm to eliminate highway vibration.

3.5 Air Tightness Testing Station

Core test for tubeless steel truck wheel rims: Inflate to rated tire pressure and hold for 5 minutes. Leakage rate ≤0.05mL/min is qualified, effectively preventing slow flat tires in long-distance transport.

4. Material & Mechanical Property Inspection

Low-cost inferior steel truck wheel rims use thin raw steel with low tensile strength, which deforms easily under overload. Standard factory inspection covers full material performance tests:

（1）Steel Chemical Composition AnalysisQualified truck wheel steel contains carbon 0.25%–0.35% and manganese 0.6%–1.0%, without excessive impurity elements that reduce toughness. Inferior materials crack easily under impact load.

（2）Tensile & Yield Strength TestTubeless steel truck wheel rim raw material tensile strength ≥350MPa, yield strength ≥240MPa. Wide-base 22.5x11.75 rims for super single tires adopt thicker high-strength steel plates to bear heavier single-wheel load.

（3）Hardness & Impact Toughness TestSurface hardness HRC 25–45; impact toughness ≥40J/cm², resisting road stone impact and curb collision deformation.

（4）Coating Salt Spray TestComplete 500-hour neutral salt spray test without rust penetration, adapting to rainy, coastal and muddy road environments.

6. Daily In-Service Inspection for Used Truck Steel Wheel Rims

（1）Before each trip, visually check rim flanges for collision deformation, rust expansion and air leakage marks around the valve mouth.

（2）Every 10,000 km, use a runout gauge to detect radial and lateral offset; replace rims with excessive runout.

（3）Conduct annual magnetic particle nondestructive testing to find hidden micro-cracks caused by long-term overload.

（4）Do not install mismatched tires on steel rims (e.g., narrow 22.5x8.25 rims with wide 445/65R22.5 tires), which accelerates rim fatigue failure.

Conclusion

Quality inspection of steel truck wheel rims covers four core layers: visual appearance, dimensional precision, material mechanical performance and dynamic fatigue durability. Whether selecting standard 22.5x8.25, mainstream 22.5x9.00 or wide-base 22.5x11.75 tubeless steel truck wheel rim, buyers must cooperate with China steel truck wheel rim factories with complete testing equipment and standardized inspection procedures.

High-quality tubeless steel truck wheel rims effectively reduce transportation safety risks and extend tire service life. Browse full specifications of factory direct-supply truck steel wheels with complete quality test reports here: https://www.landcrownwheel.com/Truck-Steel-Wheel-pl48064886.html
