OTHER OUTDOOR POWER EQUIPMENT：HAY HARVESTING MACHINERY /WHEELBARROWS & ELECTRIC WHEEL BARROW / TRANSPORT VEHICLES /TILLERS WHEEL

Home » Products » ATV/UTV Wheels » OTHER OUTDOOR POWER EQUIPMENT：HAY HARVESTING MACHINERY /WHEELBARROWS & ELECTRIC WHEEL BARROW / TRANSPORT VEHICLES /TILLERS WHEEL

OTHER OUTDOOR POWER EQUIPMENT：HAY HARVESTING MACHINERY /WHEELBARROWS & ELECTRIC WHEEL BARROW / TRANSPORT VEHICLES /TILLERS WHEEL

OTHER OUTDOOR POWER EQUIPMENT：HAY HARVESTING MACHINERY /WHEELBARROWS & ELECTRIC WHEEL BARROW / TRANSPORT VEHICLES /TILLERS WHEEL

Size：4、5、6、8 inch
Brand: RICHRISE /RISEEVER /STONERISE
Material: steel 440CL
Type: steel wheel rim for hay harvesting machinery, wheelbarrows, electric wheelbarrows, transport vehicles & tillers
Replacement wheel rims for Hay Harvesting Machinery / Wheelbarrows / Electric Wheel Barrow / Transport Vehicles / Tillers : John Deere, New Holland, Massey Ferguson, Kubota, Honda, Husqvarna, STIHL and similar agricultural & utility equipment etc.
Customization：Customization is available according to customer drawings or samples,OEM&ODM available
MOQ:50PCS
Certification:ISO/Inmetro/DOT/TUV
Surface Treatment:E-coating/Powder Coating/Chrome Plated
Color Options:Black/Silver/Customized
Quality Guarantee:1Year Warranty
Place of Origin: Shandong, China (Mainland）

Quantity:
Availability:





Inquire Add to Basket

Model:
4、5、6、8 inch
Brand:
RICHRISE /RISEEVER /STONERISE

Product Description

Wheel Specifications

规格 WHEEL SIZE	适配轮胎 RECOMMENDED TIRES SIZE	轴管长度 HUB LENGTH		轴管内径 CENTER ID

		(Inch)	(mm)	(Inch)	(mm)	Bearing Seat/Keyway/Pin Hole
4X1.6	3.00-4	2-6	50-150	1.378	35	Bearing seat
		2-6	50-150	1.654	42	Bearing seat
4X1.75	3.00-4	2-6	50-150	1.378	35	Bearing seat
		2-6	50-150	1.654	42	Bearing seat
4X2.0	3.00-4	2-6	50-150	1.378	35	Bearing seat
		2-6	50-150	1.654	42	Bearing seat
4X2.10	11X4.00-4 2.80/2.5-4	2.755	70	1.85	47	Bearing seat

		3.5	88.9	0.63	16	keyway/Pin hole

		3.7	94	1.181	30	Bearing seat

4X2.50	9X3.50-4 8X3.00-4 11X4.00-4 4.1-4	2.626	66.7	1.378	35	Bearing seat



		2.953	75	1.85	47	Bearing seat



		3	76.2	1.378	35	Bearing seat



		3.209	81.5	1.85	47	Bearing seat



		4.724	120	1.378	35	Bearing seat



4X2.60	9X3.50-4 8X3.00-4 11X4.00-4	2-6	50-150	1.378	35	Bearing seat


		2-6	50-150	1.654	42	Bearing seat


		2-6	50-150	1.85	47	Bearing seat


5X3.00 5X3.25	11X4.00-5	3.449	87.6	2.047	52	Bearing seat

		3.685	93.6	2.047	52	Bearing seat

		3.937	100	1.378	35	Bearing seat

		4.232	107.5	1.378	35	Bearing seat

		4.244	107.8	1.378	35	Bearing seat

		4.5	114.3	1.378	35	Bearing seat

		4.5	114.3	1.78	45.2	Bearing seat

		4.724	120	1.378	35	Bearing seat

		5.595	142.1	1.37	34.8	Bearing seat

		5.625	142.87	1.37	34.8	Bearing seat

6X2.50	4.10/3.50-6	3.15	80	2.047	52	Bearing seat
		3.15	80	2.047	52	Bearing seat
		3.23	82	1.378	35	Bearing seat
		3.346	85	2.047	52	Bearing sea*
6X3.25	13X5.00-6	2-6	50-150	0.75	19.1	keyway/Pin hole
		3.15	80	1.378	35	Bearing seat
		3.484	88.5	1.378	35	Bearing seat
		3.681	93.5	1.031	26.2	keyway/Pin hole
		3.988	101.3	1.78	45.2	Bearing seat
		4.213	107	0.752	19.1	keyway/Pin hole
		4.626	117.5	1.011	25.7	keyway/Pin hole
		5.252	133.4	0.87	22.1	keyway/Pin hole
		5.75	146.1	1.378	35	Bearing seat
6X3.50	13X5.00-6 15X5.00-6	2-6	50-150	0.75	19.1	keyway/Pin hole

		2.028	51.5	2.047	52	Bearing seat

		3.5	88.9	2.047	52	Bearing seat

		4.268	108.4	1.378	35	Bearing seat

		4.87	123.7	1.378	35	Bearing seat

		4.98	126.5	2.047	52	Bearing seat

		5.374	136.5	1.378	35	Bearing seat

		5.732	145.6	1.78	45.2	Bearing seat

		6.4	162.6	2	50.8	Bearing seat

6X4.0	13X5.00-6 15X5.00-6 15X6.00-6	2-6	50-150	1.378	35	Bearing seat


		2-6	50-150	1.654	42	Bearing seat


		2-6	50-150	1.85	47	Bearing seat


		2-6	50-150	2.047	52	Bearing seat


		2-6	50-150	0.75	19.1	keyway/Pin hole


6X4.50	13X6.50-6 15X6.00-6	2-6	50-150	0.75	19.1	keyway/Pin hole

		2.626	66.7	1.378	35	Bearing seat

		2.732	69.4	1.752	44.5	Bearing seat

		2.78	70.6	1.378	35	Bearing seat

		2.835	72	2.047	52	Bearing seat

		3	76.2	1.378	35	Bearing seat

		3.071	78	1.378	35	Bearing seat

		3.248	82.5	1.752	44.5	Bearing seat

		3.5	88.9	2.047	52	Bearing seat

		3.937	100	2.047	52	Bearing seat

		6.496	165	1.78	45.2	Bearing seat

8X2.50	4.80/4.00-8	3.15	80	2.047	52	Bearing seat
		3.189	81	2.047	52	Bearing seat
		3.937	100	1.575	40	Bearing seat
		4	101.6	0.75	19.1	keyway/Pin hole
		6	152.4	0.75	19.1	keyway/Pin hole
8X2.90	4.80/4.00-8	2-6	50-150	1.378	35	Bearing seat
		2-6	50-150	1.654	42	Bearing seat
		2-6	50-150	1.85	47	Bearing seat
		2-6	50-150	2.047	52	Bearing seat
		2-6	50-150	0.75	19.1	keyway/Pin hole
8X3.75	4.80-8	2.756	70	1.378	35	Bearing seat
		3.15	80	2.047	52	Bearing seat
		3.681	93.5	1.031	26.2	Bearing seat
		4.126	104.8	1.976	50.2	Bearing seat
		5	127	0.756	19.2	keyway/Pin hole
		5.138	130.5	1.78	45.2	Bearing seat
		5.72	145.3	1.024	26	Bearing seat
		6.15	156.2	0.756	19.2	keyway/Pin hole
8X5.375 8X5.50	16X6.50-8 16X7.50-8	2.748	69.8	1.378	35	Bearing seat

		2.78	70.6	1.378	35	Bearing seat

		2.835	72	2.047	52	Bearing seat

		2.976	75.6	2.047	52	Bearing seat

		3.228	82	2	50.8	Bearing seat

		3.252	82.6	2.047	52	Bearing seat

		3.5	88.9	0.758	19.3	keyway/Pin hole

		3.681	93.5	1.031	26.2	Bearing seat

		3.937	100	2.047	52	Bearing seat

		4	101.6	0.787	20	keyway/Pin hole

		5	127	0.756	19.2	keyway/Pin hole

8X7.0	18X8.5-8 18X9.5-8	2.56	65	2.047	52	Bearing seat

		2.976	75.6	2	50.8	Bearing seat

		3.346	85	2.047	52	Bearing seat

		3.366	85.5	0.757	19.2	keyway/Pin hole

		3.476	88.3	0.756	19.2	keyway/Pin hole

		3.5	88.9	2.047	52	Bearing seat

		3.74	95	2.047	52	Bearing seat

		3.795	96.4	1.007	25.6	Bearing seat

		4.173	106	0.756	19.2	keyway/Pin hole

		5.189	131.8	1.007	25.6	keyway/Pin hole

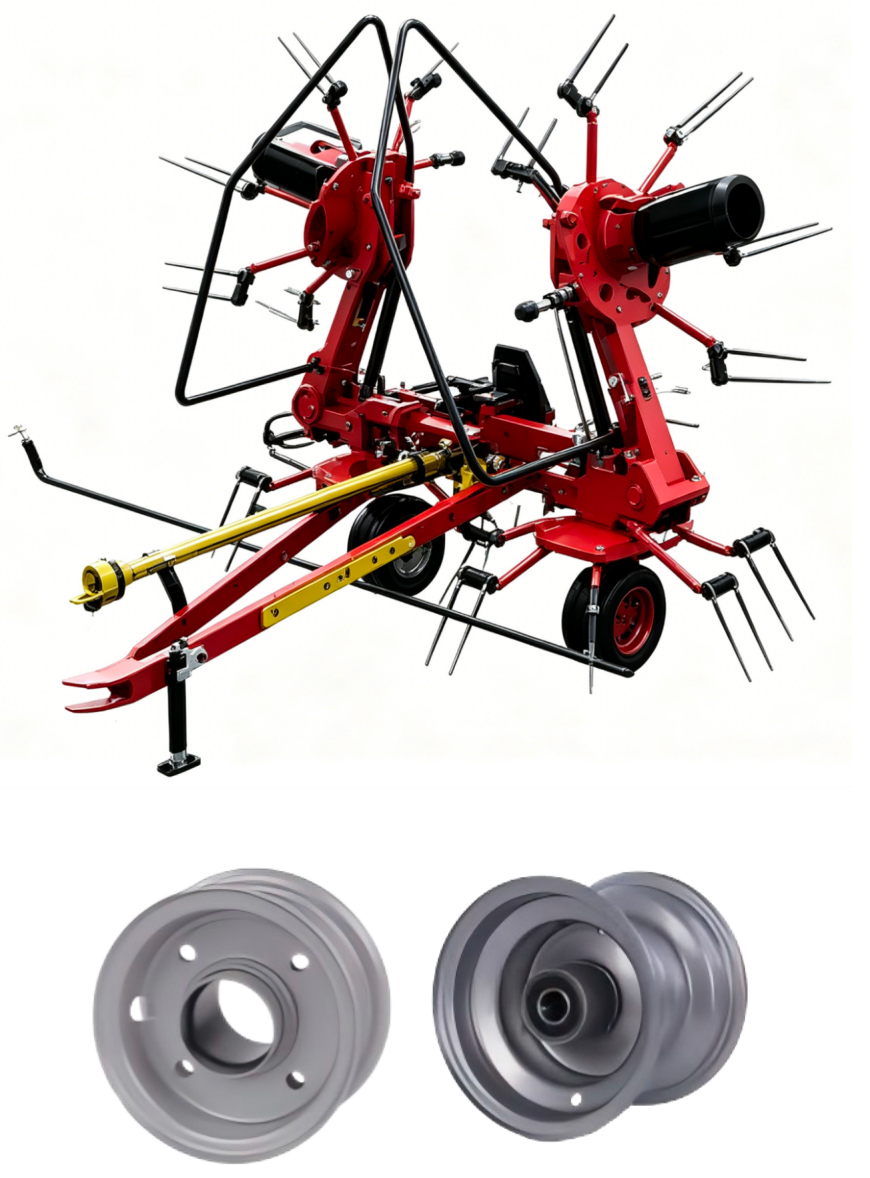

HAY HARVESTING MACHINERY WHEEL

Construction

Hay harvesting machinery wheels are manufactured with high-quality thick steel and reinforced welded construction. Through precise stamping and anti-rust surface treatment, these wheels deliver excellent rigidity and pressure resistance. They are structurally optimized to withstand continuous vibration, farm dust and crop residue abrasion during long-hour field harvesting operations.

Traction

Designed with agricultural lug tread patterns, the wheels provide outstanding traction on soft farmland, wet meadows and uneven grass terrain. The open tread design effectively releases grass, mud and straw buildup, preventing wheel clogging and ensuring stable forward movement during hay raking, mowing and baling procedures.

Compatibility & Customization

These farm wheels are universally compatible with hay rakes, mowers, balers and other forage harvesting equipment. Multiple hub sizes and bolt patterns support diverse installation demands. Custom coatings such as matte black and galvanized finishes enhance anti-corrosion performance for humid farm environments.

Applications

Specially engineered for agricultural hay harvesting workflows. Widely used on grass mowers, hay rakes, straw balers and forage processing machines. They maintain reliable performance in meadows, pastures and farmlands, improving harvesting efficiency in all weather conditions.

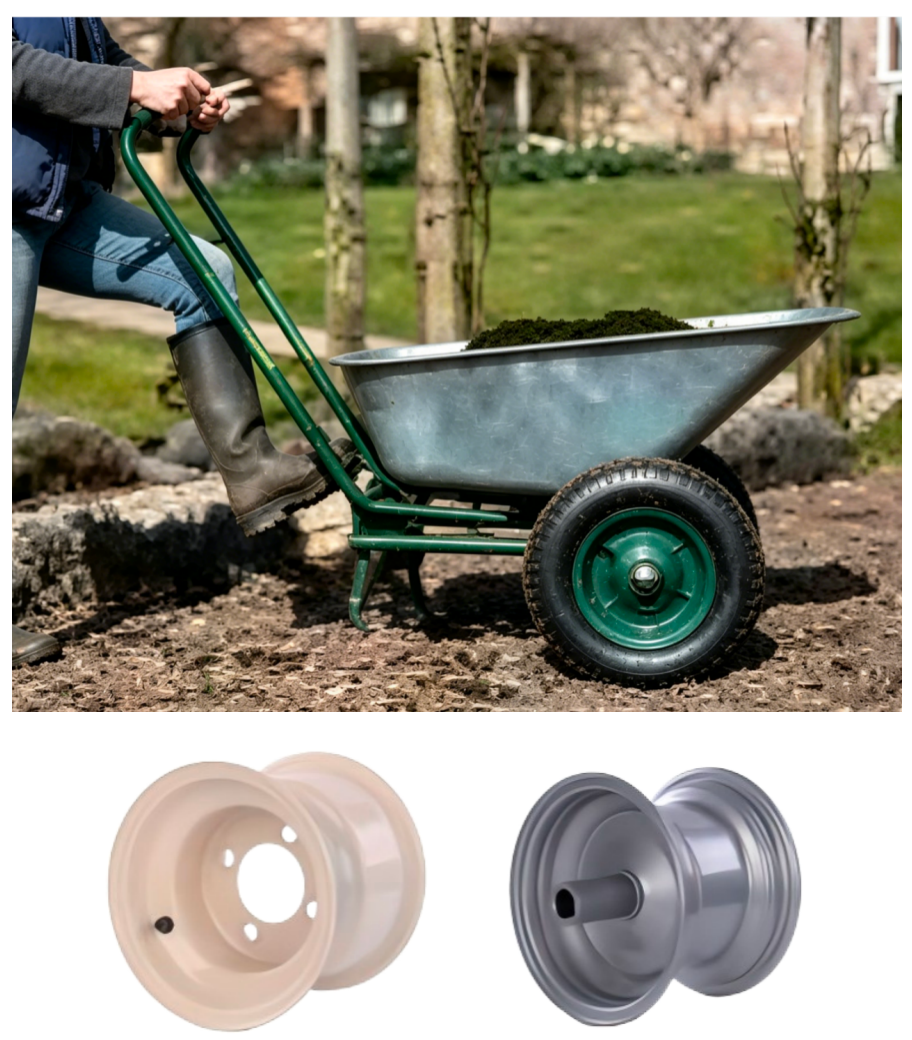

WHEELBARROWS & ELECTRIC WHEEL BARROW WHEEL

Construction

Wheelbarrow wheels adopt lightweight yet sturdy steel structure with seamless stamping technology. Featuring high mechanical strength and impact resistance, these wheels are built for frequent loading and short-distance transportation. Smooth welding and durable surface painting effectively resist rust, scratches and daily outdoor wear.

Traction

Equipped with flexible and ground-adaptive tread profiles, the wheels deliver balanced rolling performance on dirt, gravel, lawn and paved surfaces. The anti-slip tread minimizes slipping during manual pushing or electric driving, ensuring labor-saving movement and stable load transportation.

Compatibility & Customization

Suitable for standard manual wheelbarrows and electric-powered transport barrows. Various axle hole sizes and mounting structures are available. Custom wheel widths, colors and surface finishes can be customized to match different transport equipment appearances and usage scenarios.

Applications

Ideal for construction handling, garden landscaping, farm cargo moving and household transportation. Whether for manual carrying or electric intelligent transfer, these wheels offer smooth rolling, easy maneuverability and long service life for daily light-duty transport tasks.

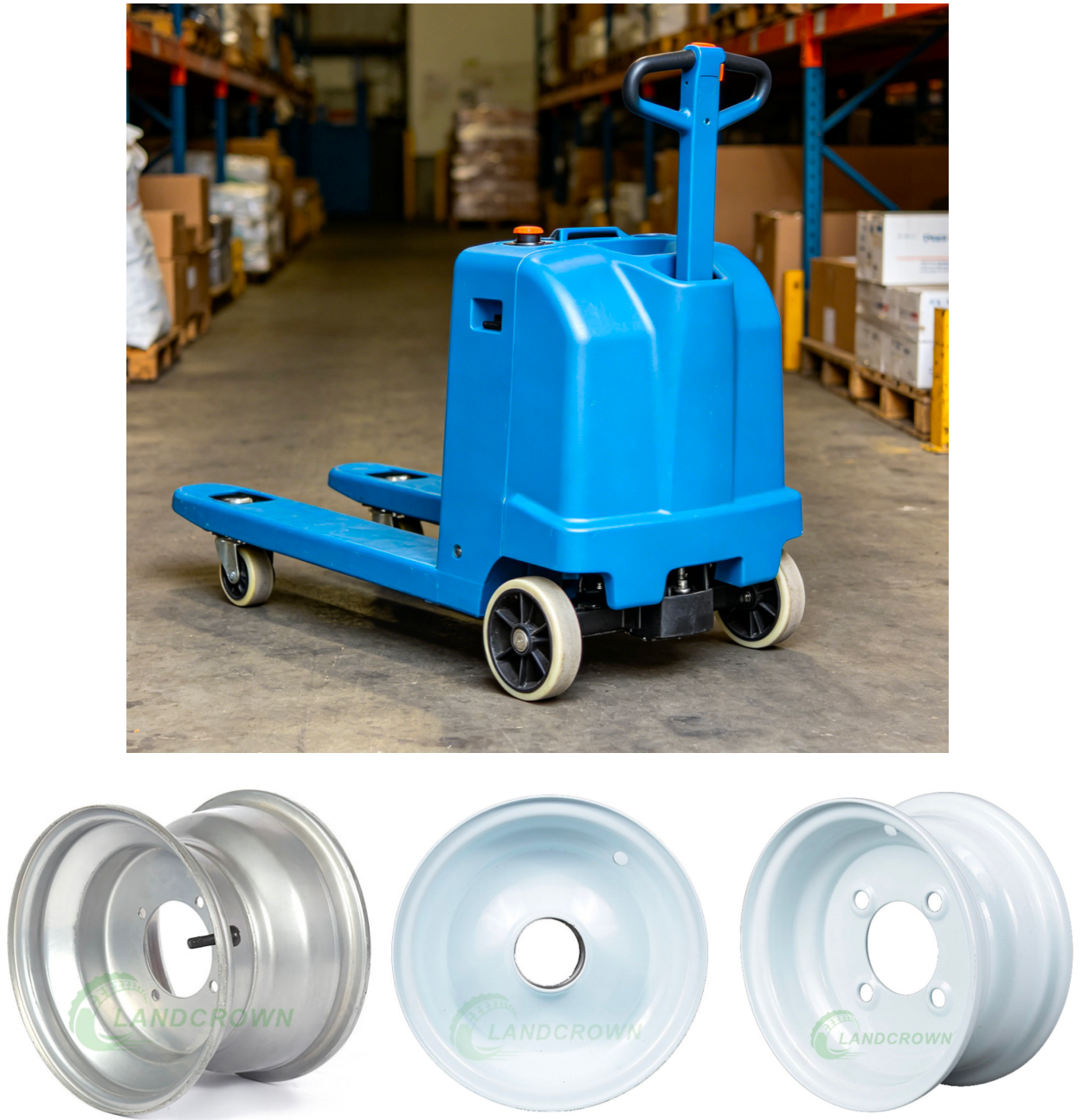

TRANSPORT VEHICLES WHEEL

Construction

Transport vehicle wheels are constructed with heavy-duty steel plates and enhanced load-bearing structure. With optimized rim thickness and welding strength, these wheels withstand continuous heavy cargo pressure and frequent start-stop movements. Industrial-grade surface treatment provides excellent oxidation and abrasion resistance for long-term outdoor service.

Traction

Engineered with balanced all-terrain tread, the wheels ensure stable rolling on rugged yards, muddy roads and construction ground. The reinforced friction design prevents lateral sliding during heavy-load transportation, keeping the transport vehicle steady and controllable at low and medium speeds.

Compatibility & Customization

Compatible with industrial transport trolleys, farm transfer vehicles and small cargo trailers. Multiple bolt layouts and center hole specifications support diverse assembly requirements. Custom painting and anti-rust treatments are available to adapt to wet, dusty and corrosive working conditions.

Applications

Widely applied in farms, construction sites, warehouses and logistics yards. Perfect for material handling, cargo transferring and short-distance heavy goods movement. These durable transport wheels provide consistent stability and safety for daily industrial and agricultural transportation.

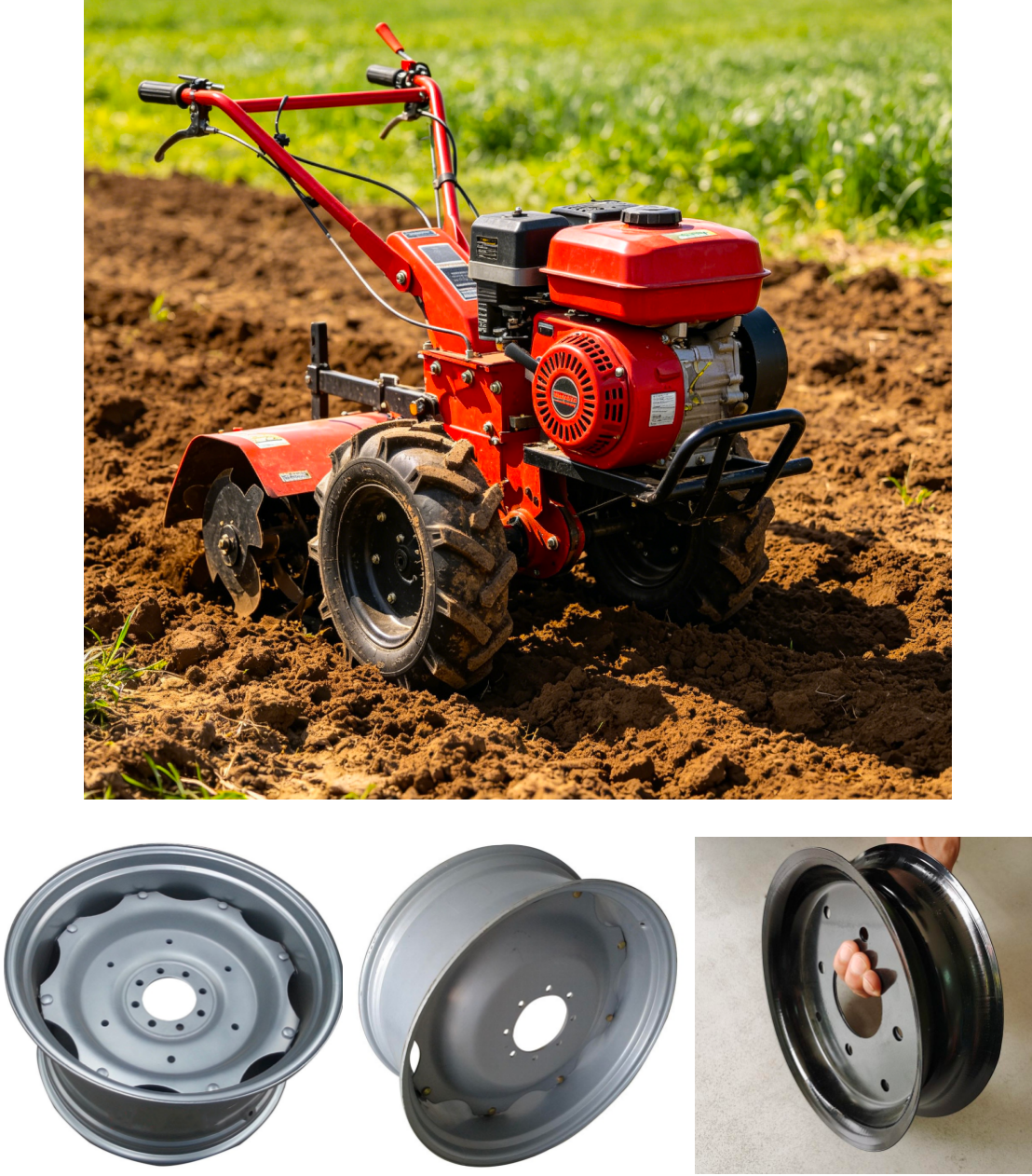

TILLERS WHEEL

Construction

Tiller wheels are made of thickened high-tensile steel with rugged one-piece forming technology. Reinforced rim and hub structure effectively resist torsion, extrusion and soil impact during tillage work. Strict heat treatment and anti-rust coating ensure outstanding durability in wet, muddy and corrosive farm soil environments.

Traction

Featuring deep agricultural aggressive treads, the wheels deliver powerful gripping force on sticky mud, loose soil and rough farmland. The special groove design removes soil automatically to prevent mud accumulation. Strong traction ensures non-slip propulsion during plowing, cultivating and field tillage operations.

Compatibility & Customization

Fully compatible with various miniature tillers, cultivators and soil preparation machinery. A wide range of shaft hole sizes and installation spacings meet different tiller assembly standards. Custom surface finishes and wheel widths are optional to fit various farming working habits.

Applications

Essential for farmland cultivation, garden tilling, orchard soil loosening and horticultural land preparation. Suitable for small agricultural tillers used in family farms, vegetable gardens and mountain plots. The wheels provide powerful traction and flexible maneuverability for all soil tillage tasks.

Quality Assurance

· Manufacturing Processes: Our steel wheels are produced using advanced technology and adhere to strict quality control standards. Every step, from raw material selection to final inspection, is closely monitored.

· Testing & Certification: All wheels undergo rigorous tests, including load - bearing, impact, and corrosion resistance tests. They comply with relevant international standards and certifications, ensuring their performance and reliability.

Why Choose Our Steel Wheels?

· Proven Reputation: With years of industry experience, our steel wheels have a well - established reputation for quality, performance, and durability.

· Customer Service: We are dedicated to providing excellent customer service. Our knowledgeable team is available to assist with any inquiries, from product selection to after - sales support.

· Competitive Pricing: We offer high - quality steel wheels at competitive prices, making premium - quality products accessible to all.
