4、5、6、8、9、10、12 inch
RICHRISE /RISEEVER /STONERISE
Wheel Specifications
| 规 格 WHEEL SIZE | RECOMMENDED TIRES SIZE 适配轮胎 | 轴管长度 HUB LENGTH | 轴管内径 CENTER ID | 轴承类型 BEARING TYPE | 颜色 COLOR |
| 4X2.25 | 4.10/3.50-4 | 3.5” | 16.0MM | CAGE | GREY SILVER WHITE BLACK GOLD RED YELLOWCREAM GREEN CUSTOMIZED-可定制 |
| 5X3 | 11X4.00-5 | 4.0” | 16.0MM | SEALED | |
| 5X3 | 11X4.00-5 | 4.1” | 13.5MM | SEALED | |
| 6X3.25 | 13X5.00-6 | 5.6” | 13.5MM | SEALED | |
| 6X3.25 | 13X5.00-6 | 5.8” | 13.5/18.8MM | TAPER | |
| 6X4.5 | 13X6.50-6/15X6.00-6 | 7.3” | 13.5/18.8MM | TAPER | |
| 6X4.5 | 13X6.50-6/15X6.00-6 | 7.3” | 13.5/18.8MM | TAPER | |
| 6X4.5 | 13X6.50-6/15X6.00-6 | 6.97” | 13.5/18.8MM | TAPER |
| 规 格 WHEEL SIZE | RECOMMENDED TIRES SIZE 适配轮胎 | 分布圆 PCD BOLT PATTERN (IN.) | 偏距 OFFSET (IN.) | 颜色 COLOR |
| 8X3.75 | 4.80X8 | 4 on 4 | 0 | GREY SILVER WHITE BLACK GOLD RED YELLOW CREAM GREEN CUSTOMIZED-可定制 |
| 8X3.75 | 4.80-8 | 5 on 4.5 | 0 | |
| 8X5.375 | 16X6.50-8 | 4 on 4 | 0 | |
| 8X5.375 | 16X6.50-8 | 5 on 4.5 | 0 | |
| 8X7 | 16X7.50-8 | 4 on 4 | -1.3 | |
| 8X7 | 18X8.50-8 | 4 on 4 | -0.89 | |
| 8X7 | 18X8.50-8 | 4 on 4 | 0.08 | |
| 8X7 | 18X8.50-8 | 4 on 4 | 0 | |
| 8X7 | 18X8.50-8 | 5 on 4.5 | 0 | |
| 8X7 | 18X8.50-8 | 5 on 4.5 | 0.08 | |
| 9X10 | 25X12.00-9 | 5 on 4.5 | 0.5 | |
| 10X6 | 20X8.00-10 | 4 on 4 | 0 | |
| 10X6 | 20X8.00-10 | 5 on 4.5 | -0.31 | |
| 10X7 | 18X8.50-10 | 4 on 4 | -0.5 | |
| 10X7 | 18X8.50-10 | 5 on 4.5 | -1.38 | |
| 10X8.5 | 20X11/12.00-10 | 4 on 4 | -1.23 | GREY SILVER WHITE BLACK GOLD RED YELLOW CREAM GREEN CUSTOMIZED-可定制 |
| 12X7 | 23X8.50-12 | 4 on 4 | -0.75 | |
| 12X7 | 23X8.50-12 | 5 on 4.5 | 0 | |
| 12X8 | 25X10.00-12 | 5 on 4.5 | 0 | |
| 12X8.5 | 23X10.50-12 | 4 on 4 | -1 | |
| 12X8.5 | 23X10.50-12 | 5 on 4.5 | 0.81 | |
| 12X9.5 | 24X12.00-12 | 4 on 4 | 0 | |
| 12X9.5 | 24X12.00-12 | 5 on 4.5 | 0 | |
| 12X10.5 | 26X12.00-12 | 4 on 4 | -1.125 | |
| 12X10.5 | 26X12.00-12 | 5 on 4.5 | 0 | |
| 12X10.5 | 26X12.00-12 | 6 on 6 | 0 |

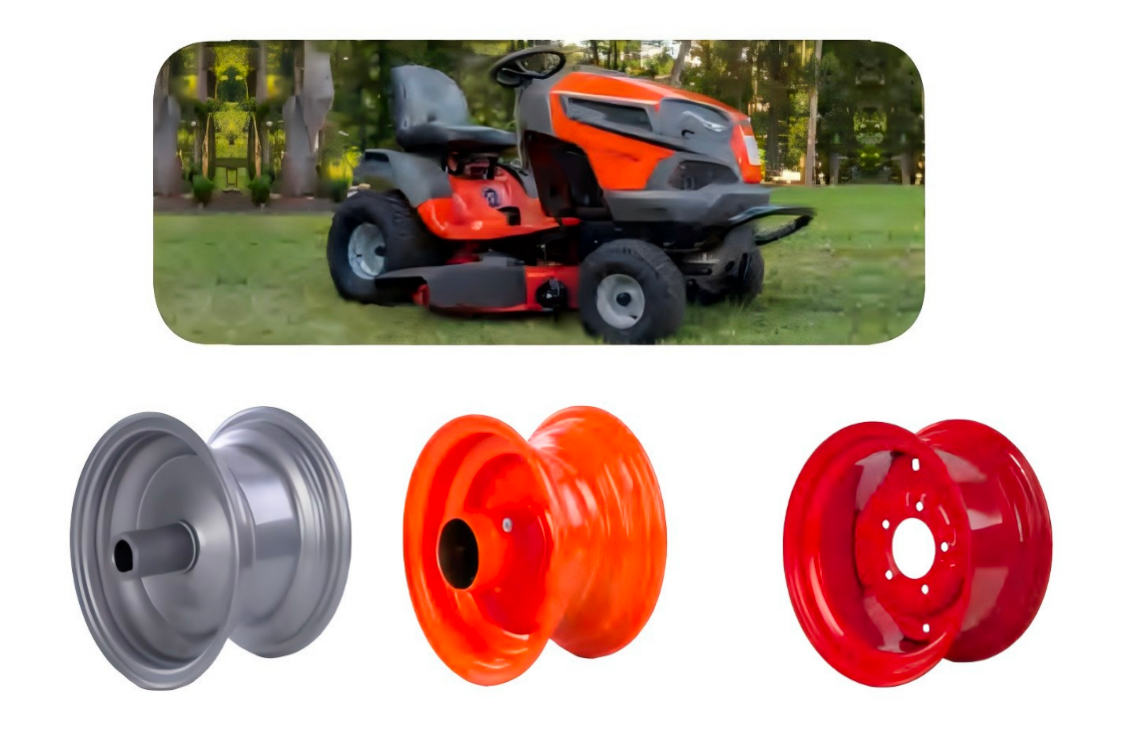

LAWN & GARDEN WHEEL
Construction
Our lawn & garden wheels are manufactured from high-quality durable raw materials, featuring robust structural rigidity and excellent load-bearing capacity. The thickened wheel hub and reinforced rim design effectively resist daily extrusion, friction and minor collisions during garden maintenance. Advanced molding and surface treatment processes prevent rusting and cracking, enabling the wheels to maintain stable performance in long-term outdoor lawn working environments.
Traction
Designed with optimized shallow anti-slip tread patterns, these wheels deliver gentle and stable grip on soft lawn, soil and wet grassland. The streamlined tread grooves effectively drain mud and fallen grass, avoiding wheel slipping and grass entanglement. They provide smooth rolling performance on flat hard ground and uneven lawn surfaces, ensuring flexible and steady movement of gardening equipment.
Compatibility & Customization
Engineered for wide compatibility with various gardening equipment, including lawn mowers, garden tractors, yard carts and tillers. We provide multiple wheel diameters, shaft hole sizes and mounting structures to meet diverse assembly requirements. Customization options cover diversified surface finishes such as matte black, grey rubber coating and anti-UV painted colors, perfectly matching the appearance and configuration of different garden machines.
Applications
Ideal for daily residential lawn maintenance, courtyard gardening trimming, farm turf care and public green space management. With lightweight structure, flexible rolling and wear-resistant performance, these wheels are the ideal accessory for all kinds of lawn and garden equipment, bringing labor-saving and efficient operating experience.
· Manufacturing Processes: Our steel wheels are produced using advanced technology and adhere to strict quality control standards. Every step, from raw material selection to final inspection, is closely monitored.
· Testing & Certification: All wheels undergo rigorous tests, including load - bearing, impact, and corrosion resistance tests. They comply with relevant international standards and certifications, ensuring their performance and reliability.
· Proven Reputation: With years of industry experience, our steel wheels have a well - established reputation for quality, performance, and durability.
· Customer Service: We are dedicated to providing excellent customer service. Our knowledgeable team is available to assist with any inquiries, from product selection to after - sales support.
· Competitive Pricing: We offer high - quality steel wheels at competitive prices, making premium - quality products accessible to all.
