Truck Tire and Rim Size Chart

A practical wheel matching guide for importers and wholesale buyers

Choosing the correct truck wheel requires more than matching the rim diameter to the tire. Confirm rim width, construction, load capacity, and vehicle mounting dimensions before ordering. This guide combines a tire and rim reference chart with measurement photos to help you prepare the information LANDCROWN needs to review your requirements.

How to read tire and rim sizes

For 315/80R22.5, 315 is the nominal tire section width in millimeters, 80 is the aspect ratio, R indicates radial construction, and 22.5 is the nominal rim diameter in inches. A rim shown as 22.5x9.00 has a nominal diameter of 22.5 inches and a width of 9.00 inches.

Truck tire and rim size references

A measuring rim is the reference used for published tire dimensions; it is not necessarily the only approved rim. The simplified sizes below do not specify the complete rim contour or construction.

22.5 inch truck tires

Additional tire and rim references

20 inch and 24 inch truck tires

17.5 inch 19.5 inch and 24.5 inch truck tires

Reference note: Adapted from the supplied tire and wheel reference compilation dated December 24, 2014, citing GB/T 2977-2008, ETRTO 2012, and TRA 2012. These are historical measuring-rim references, not a complete list of currently approved fitments. Check current technical data for the exact tire before ordering.

Why tire size alone is not enough

Two wheels marked 22.5x9.00 may have different bolt patterns, center bores, offsets, or load ratings. Confirm the bolt-hole count and PCD, centering system, nut-seat design, offset, brake clearance, and dual-wheel spacing where applicable. The rim contour and construction must also match the tire requirements.

Both tire and wheel load and pressure ratings must meet the intended operating requirements. A higher-rated tire does not increase the capacity of the wheel.

How to measure your existing wheel

Use the photographs as a guide to record the dimensions of an existing bare wheel. Send clear photos showing where each measurement was taken. Record measured dimensions in millimeters (mm).

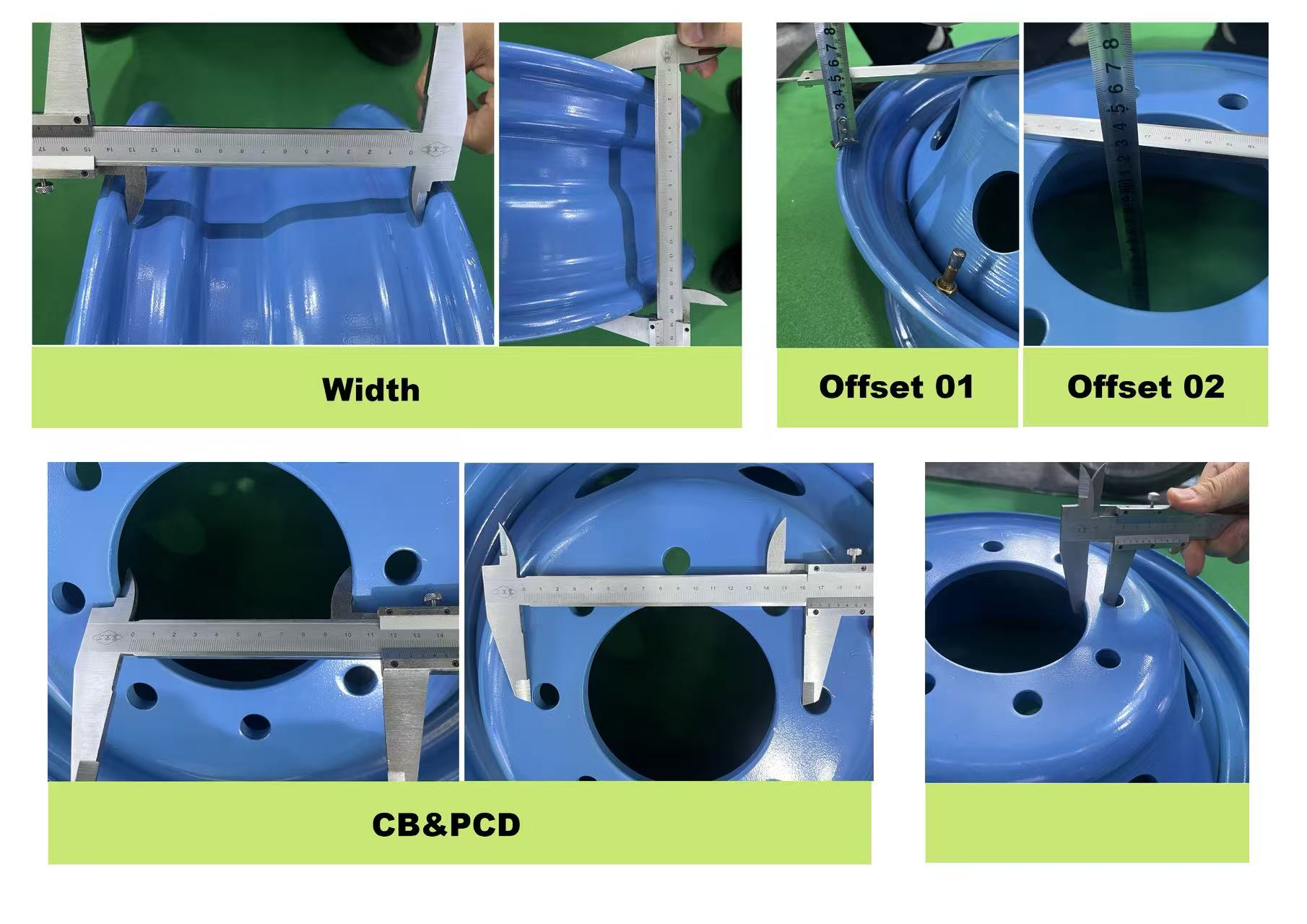

Wheel measurement examples. The photos labelled Offset 01 and Offset 02 show depth checks; the readings alone do not establish wheel offset.

Rim width: Measure between the inner faces of the rim flanges. Do not confuse this with overall outside width.

Center bore: Measure the diameter of the center opening.

Bolt holes: Count the mounting holes and measure their diameter. Include a close-up of the hole and nut-seat shape.

PCD: For equally spaced holes with an even hole count, measure from one hole center to the center of the directly opposite hole. If unsure, send a clear front-view photo with the measurement positions visible.

Mounting depth: Place a straightedge across the rim edge and measure to the hub-contact mounting face. Identify the side and reference surfaces used. Our team can help review the information needed to confirm offset.

Nominal rim diameter: Send a photo of the stamped wheel size or a technical drawing. The outside flange diameter is not the nominal rim diameter.

Common questions about wheel matching

What rim is listed for 11R22.5 tires

The chart lists 22.5x8.25 as the measuring rim. Confirm approved widths and restrictions in the exact tire manufacturer’s technical data.

What rim is listed for 315/80R22.5 tires

The chart lists 22.5x9.00 as the measuring rim. Final selection also requires checking wheel ratings and vehicle mounting dimensions.

Can different tire sizes use the same rim size

Several tire sizes may share a measuring rim size. This does not make the tires interchangeable on a vehicle. Tire diameter, load capacity, clearance, and vehicle requirements must also be checked.

Can I order using only a photograph

Photos help identify wheel markings and construction. A dimensioned drawing, verified measurements, or an original part number supported by technical specifications is more reliable for order confirmation.

Send your measurements to LANDCROWN

Dongying Landcrown Autoparts Co., Ltd. supplies truck steel and forged aluminum wheels for overseas importers, wholesalers, and distributors. Send your measurement photos and specifications by email or WhatsApp so our team can help review the dimensions and parameters.

· Tire brand, model, and complete size designation.

· Wheel size markings, front and rear photos, and a drawing or original part number if available.

· Bolt-hole count, PCD, center bore, hole diameter, and offset or clearly identified depth measurements.

· Vehicle model, axle position, required load capacity, and operating pressure.

· Order quantity and destination country.

If any information is missing, we will help identify what needs further confirmation. The proposed wheel specification should be confirmed with you before ordering.
