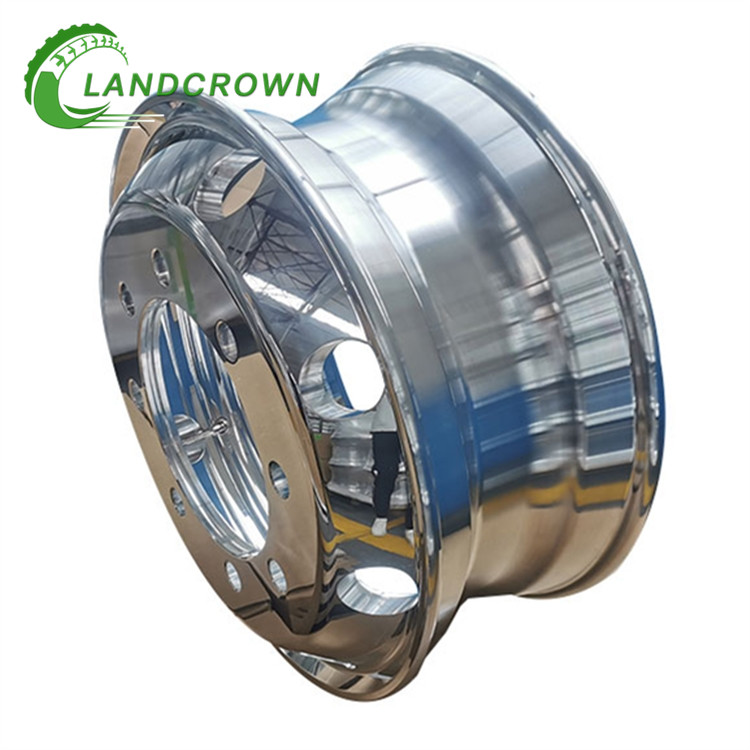

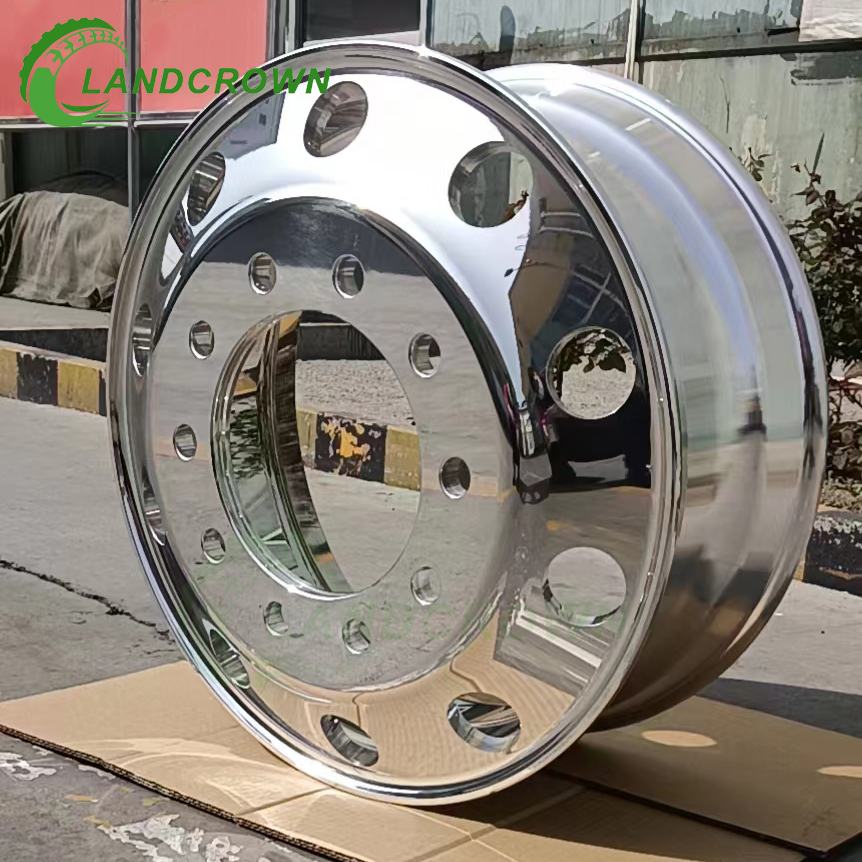

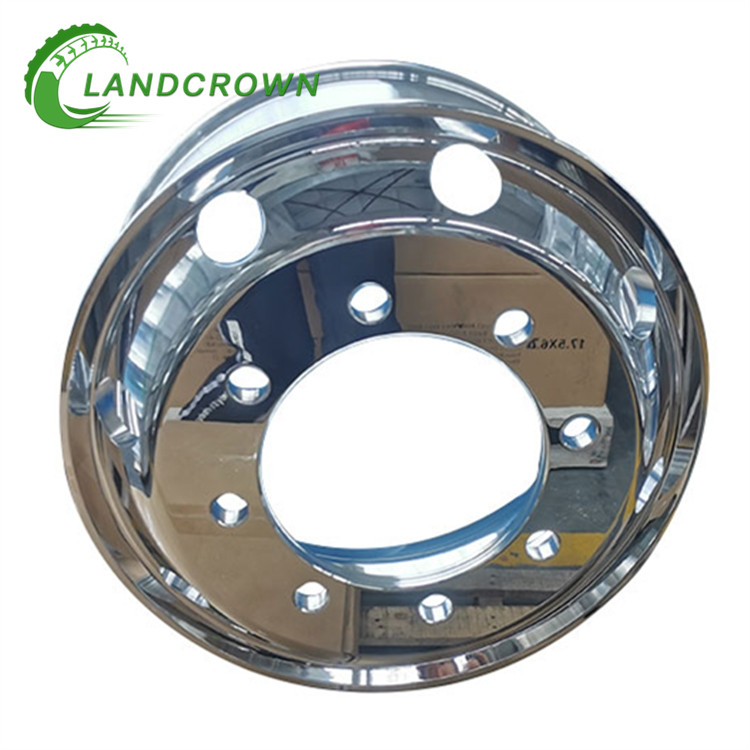

19.5 Inch 19.5x6.75 Forged Aluminum Truck Wheel Rim For Tire 225/70R19.5
Home » Products » Truck Wheel » Truck Aluminum Wheel » 19.5 Inch 19.5x6.75 Forged Aluminum Truck Wheel Rim For Tire 225/70R19.5

19.5 Inch 19.5x6.75 Forged Aluminum Truck Wheel Rim For Tire 225/70R19.5

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • 19.5x6.75

  • RICHRISE

Custom Wheels: Wholesale, Retail, Brand Customization

Based on the parameters you provide, we can create detailed production blueprints and custom - make wheels. Our product is

available for wholesale and retail. For large - scale orders, we offer brand and packaging customization. This enables you to
build a unique product image that suits your business needs.

If you're unsure about the required product parameters, refer to the product measurement method at the end of the page to
accurately determine the details for your order.

Wheel Size Offset(mm/in.) DiscGauge(mm/in.) Bolthole(mm) Centerhole(mm/in.) P.C.D(mm)
19.5x6.75 142/5.59" 22/0.86" 6-φ32.5 164/6.46" φ222.25
19.5x6.75 142/5.59" 22/0.86" 10-φ26 176/6.93" φ225

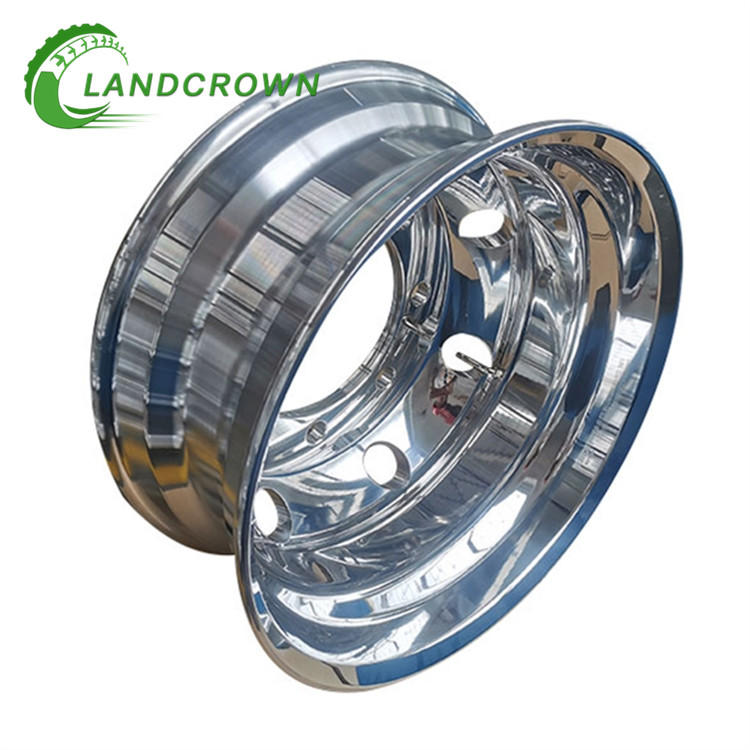

19.5x6.75 04 logo19.5x6.75 03_副本

Vent Hole Type: 7 Trapezoid


Vent Hole Type: 10 Trapezoid
Presented Valve
All truck wheels in our store come with free, compatible valve stems, ensuring easy installation and airtight seal for top - tier tire performance. If you need extra valve stems, contact our customer service for special pricing. Our reps are ready to help with quick answers and expert advice.


  Product Packaging

1 THE FACTORY PRICE
We will provide you with quality service and preferential price,your satisfaction is our service purpose.

2 AFTER-SALES SERVICE
We have professional after-sales service,professional maintenance service department,24-hour online service for you to solve problems

3 QUALITY ADVANTAGE
Quality First.Our raw material supplier is the first-class supplier,which ensures the stability of raw material quality,thus ensuring the stability of tyre and wheel quality

4 FACTORY ADVANTAGE
We can produce mold by ourselves.We have our own mold plant.Any tire or wheel rim size that you are interested,we can do mold


MEASURING METHOD

WHEEL DIAMETER 22.5"

MEASURED AT BEAD TO BEAD

WHEEL WIDTH 8.25"

TYPICAL FOR 315/80R22.5 TIRES

BOLT HOLE

BOLT HOLE DIAMETER

10 ON 285MM BOLT PATTERN

STANDARD 10 LUG PATTERN FOR HD TRUCKS

CENTER BORE 220MM

HUB CENTERED WHEEL

THICKNESS 24MM

Thickness of wheel disc

OFFSET

167mm TECHNICAL OFFSET FROM CENTERLINE OF WHEEL

269.75MM BACKSPACING

MEASURED FROM RIM FLANGETO MOUNTING SURFACE
Still can't figure out which wheel is your ideal match? No sweat! Our team is fully dedicated to customized production using the samples you send over. Just pack up those samples and mail them right over to us, and let's get started on creating the perfect wheel tailored just for you.
1. Highlighting Uniqueness
* Get one - of - a - kind products from your samples, tailored to your specs.
* Create unique, custom - designed items with sample - based service.
2. Emphasizing Precision
* Sample - based customization: replicate details for top - quality products.
* Sample - based orders ensure a perfect match with meticulous precision.
3. Stressing Flexibility
* Flexibility in sample - based customization: bring your ideas to life.
* Design products to your needs with our flexible sample - based service.
4. Focusing on Exclusive Offerings
* Access exclusive, custom - made products from your samples.
* Sample - based customization offers special, non - off - the - shelf items.
