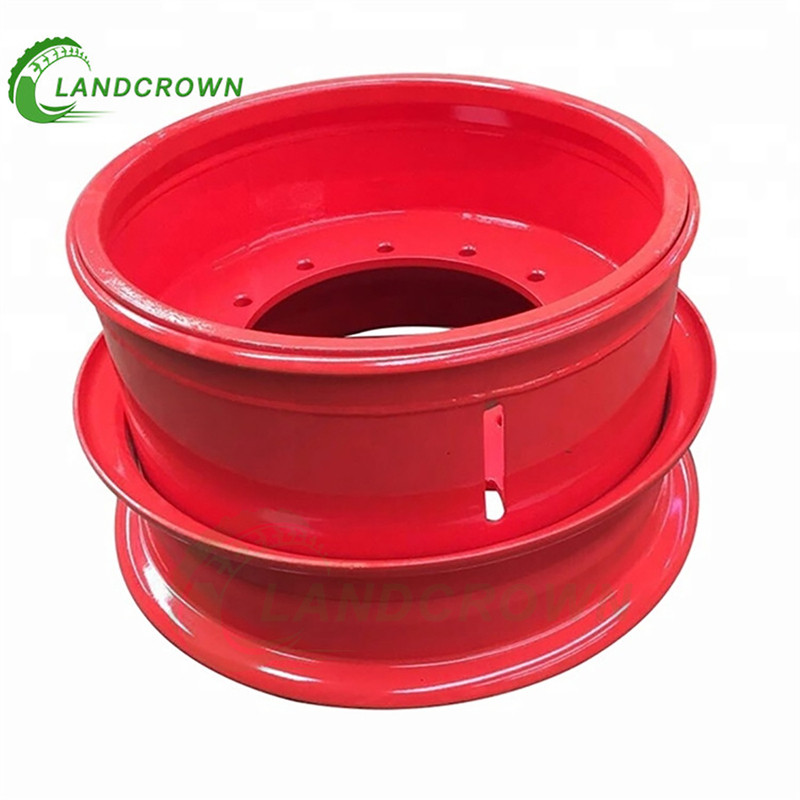

Engineering Wheel Rim 25-14.00/1.5-3PCS for Loader OTR Tyre 17.5-25

Quantity:
Availability:





Inquire Add to Basket

Model:
25-14.00/1.5-3PCS
Brand:
RICHRISE

Product Description

Products Description

Custom Wheels: Wholesale, Retail, Brand Customization

Based on the parameters you provide, we can create detailed production blueprints and custom - make wheels.

Our product is available for wholesale and retail.

For large - scale orders, we offer brand and packaging customization. This enables you to build a unique product image that suits your business needs.

★★★ If you're unsure about the required product parameters, refer to the product measurement method at the end of the page to accurately determine the details for your order.

size	matching tires	tire type	disc type	offset /mm	assembly height /mm	center hole /mm	bolt hole D.I.A	bolt hole	P.C.D /mm
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	0	174	φ352	φ24	12	φ404
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	35.5	221.5	φ357	φ21.5	10	φ414
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	99.5	285.5	φ406	φ21.5	10	φ480
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	35.5	221.5	φ357	φ21.5	10	φ414
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	12.5	174	φ352	φ21.5	12	φ404
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	11	197	φ281	φ26	10	φ335
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	75	111	φ352	φ22	10	φ398
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	49	137	φ281	φ26	10	φ335
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	0	172	φ352	φ24	12	φ404
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	42	142	φ352	φ24	12	φ404
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	0	172	φ352	φ24	12	φ404
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	12	173	φ352	φ24	12	φ404
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	15	169	φ352	φ24	12	φ404
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	12	192	φ352	φ24	12	φ404
25-14.00/1.5-3PCS	17.5-25	solid tire	plate	7	177	φ221	φ27	8	φ275
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	22	207	φ281	φ26	10	φ335
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	8	176.5	φ280	φ26	10	φ335
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	12	174	φ352	φ24	12	φ404
25-14.00/1.5-3PCS	17.5-25	solid tire	plate	27.5	212	φ285	φ30	10	φ335
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	0	174	φ352	φ24	10	φ404
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	0	174	φ352	φ24	10	φ404
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	0	174	φ352	φ24	12	φ404
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	0	174	φ352	φ24	10	φ404
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	0	174	φ352	φ24	10	φ404
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	0	174	φ352	φ24	10	φ404
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	0	174	φ352	φ24	10	φ404
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	0	174	φ352	φ24	10	φ404
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	-14	174	φ352	φ24	10	φ404
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	-14	174	φ352	φ24	10	φ404
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	-14	174	φ352	φ24	10	φ404
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	-14	174	φ352	φ24	10	φ404
25-14.00/1.5-3PCS	17.5-25	inner tube	plate	-14	174	φ352	φ24	10	φ404
25-14.00/1.5-3PCS	17.5-25	solid tire	plate	33	153	φ352	φ24	12	φ404
25-14.00/1.5-3PCS	17.5-25	tubeless	plate	-14	175.3	φ352	φ24	10	φ404
25-14.00/1.5-3PCS	17.5-25	tubeless	plate	-14	175.3	φ352	φ24	10	φ404
25-14.00/1.5-3PCS	17.5-25	tubeless	plate	-14	175.3	φ352	φ24	10	φ404

MEASURING METHOD

图纸说明-三件式17.00-25 10-30 285 230_01
